Good points

Brand: Ruck
AC motor
Rookgas F400
Frequency controlled

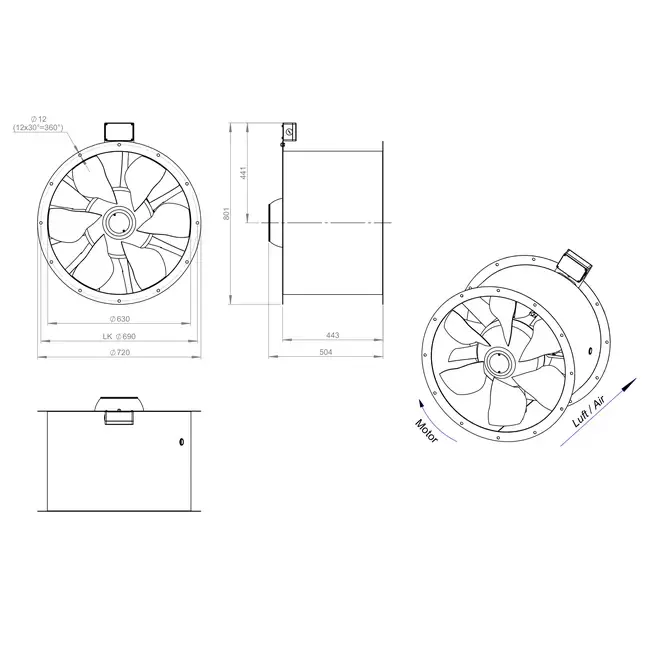

Axial 630 mm Duct Fan Flue Gas F400 – AL 630 D6 F4 02 CFG

The AL 630 D6 F4 02 CFG from Ruck is an innovative, high-efficiency axial fan, specifically designed for medium pressure applications and flue gas discharge in accordance with the F400 standard. Thanks to the latest numerical design techniques, system efficiency has been enhanced and the operating range expanded. This fan is suitable for both regular ventilation and smoke and heat extraction in case of fire (dual-use), featuring adjustable blades for flexible deployment.

Optimized Design for Efficient Performance

This fan boasts a robust yet lightweight design, facilitating installation and handling. Equipped with an IEC standard motor suitable for frequency control, you can easily adjust the fan to meet your specific requirements. The aerodynamically optimized blades ensure higher airflow and increased efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and fully complies with the F400 standard for flue gas ventilation. Delivered without a terminal box, but with a cable for easy connection of an external switch.

Reliable Performance from Ruck

Ruck Ventilatoren GmbH is a leading German manufacturer known worldwide for its reliable and energy-efficient products. All fans comply with the latest ERP (Energy Related Product) guidelines and are designed for long, trouble-free performance in the most demanding environments.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544321541
Manufacturer's item number	AL 630 D6 F4 02 CFG
Article number	65170472

Specifications

Category code	35
Length	443 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	18610 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	630 mm
