Good points

Brand: Ruck
AC motor
Rookgas F400
Frequency controlled

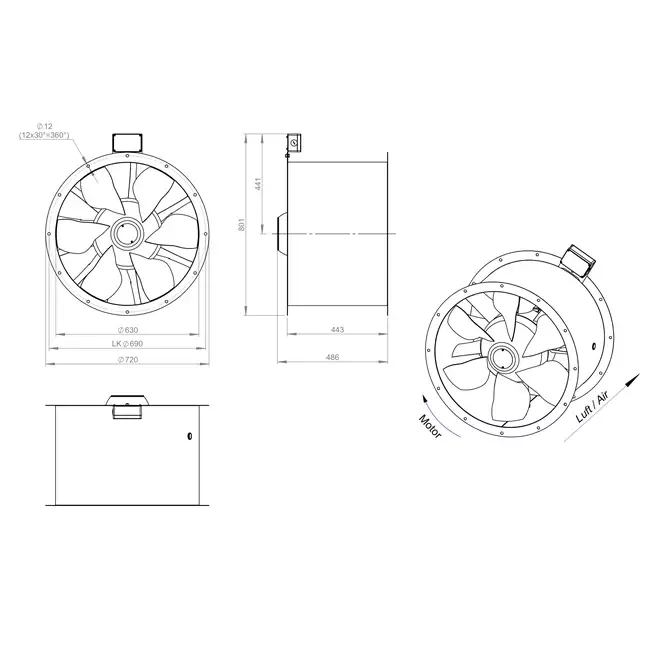

Axial 630 mm Duct Fan Flue Gas F400 – AL 630 D6 F4 01 CFG

The AL 630 D6 F4 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications and flue gas extraction according to the F400 standard. Thanks to the latest numerical design techniques, system efficiency has been enhanced and the operating range expanded. This fan is ideal for both regular ventilation and smoke and heat extraction in case of fire (dual-use), thanks to the adjustable blades.

Optimized Design for Flexible Use

This fan features a lightweight and robust design that facilitates installation and handling. Equipped with an IEC standard motor suitable for frequency control, you can flexibly adjust the fan to your specific needs. The aerodynamically optimized blades ensure efficient airflow and improve performance. This model is suitable for continuous operation at air temperatures up to 60 °C and fully complies with the F400 standard for flue gas ventilation. Delivered without a terminal box, but with a cable for easy connection of an external switch.

Reliable Quality from Ruck

Ruck Ventilatoren GmbH is a leading German manufacturer known worldwide for its reliable and energy-efficient products. All fans comply with the latest ERP (Energy Related Product) guidelines and deliver excellent performance, even under the most demanding conditions.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544321558
Manufacturer's item number	AL 630 D6 F4 01 CFG
Article number	65170478

Specifications

Category code	35
Length	443 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	16590 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	630 mm
