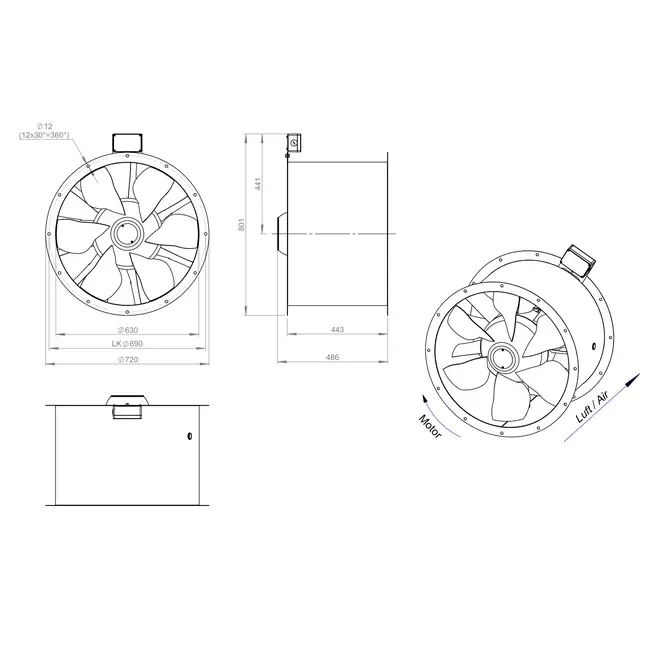

Axial 630 mm Duct Fan Flue Gas F400 – AL 630 D4 F4 03 CFG
The AL 630 D4 F4 03 CFG from Ruck is an innovative and highly efficient axial fan, specifically designed for medium pressure applications and flue gas extraction according to the F400 standard. Thanks to the application of the latest numerical design techniques, system efficiency has been optimized and the operating range has been expanded. The adjustable blades make this fan suitable for both regular ventilation and smoke and heat extraction in case of fire (dual-use).
Optimized Design for Versatility
This fan features a lightweight and optimized design that facilitates installation and handling. It is equipped with an IEC standard motor suitable for frequency control, allowing you to flexibly adjust the fan to your specific requirements. The aerodynamically optimized blades contribute to efficient airflow and improved performance. This model is suitable for continuous operation at air temperatures up to 60 °C and fully complies with the F400 standard for flue gas ventilation. Delivered without a terminal box, but with a cable for easy connection of an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer known worldwide for its reliable and energy-efficient ventilation technologies. All products are developed according to current ERP (Energy Related Product) guidelines and offer proven performance and long service life, even under the most demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321503 |
| Manufacturer's item number | AL 630 D4 F4 03 CFG |
| Article number | 65170457 |
Specifications
| Category code | 35 |
| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 20790 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 630 mm |
