Good points
- Brand: Ruck
- AC motor
- Rookgas F300
- Frequency controlled

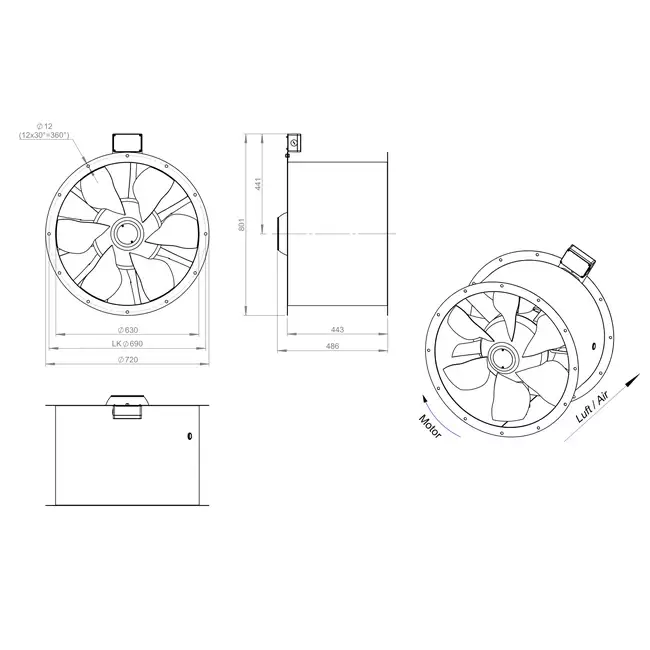

Axial 630 mm Duct Fan Flue Gas F300 – AL 630 D84U F3 02 CFG
The AL 630 D84U F3 02 CFG from Ruck is an innovative and highly efficient axial fan, designed for flue gas extraction and daily ventilation. Thanks to the application of the latest numerical simulation techniques, the design has been optimized for maximum system efficiency. The adjustable blade positions provide a wide operating range, making this fan versatile for various applications. This model is F300 certified and suitable for continuous use up to 60 °C. Thus, it is perfectly suited as a dual-use fan: for normal air exchange and flue gas heat extraction in case of fire.
Robust Design with Optimized Weight
The AL 630 D84U F3 02 CFG is built with a sturdy yet lightweight construction. This makes installation easier and maintenance more efficient. The optimized design ensures a lower weight without compromising performance or reliability. The fan is equipped with an energy-efficient IE3 motor with two-speed control via a Dahlander connection, allowing for flexible and efficient operation. The aerodynamically shaped rotor and stator blades provide high efficiency in medium-pressure applications. The model is excellently suited for medium-sized commercial and industrial installations.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German manufacturer that has been developing reliable ventilation solutions for many years. With a team of over 300 specialists, their products meet the strictest standards for fire safety and energy efficiency. The AL 630 D84U F3 02 CFG also complies with current ERP directives and delivers consistent performance under demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544322494 |
| Manufacturer's item number | AL 630 D84U F3 02 CFG |
| Article number | 65171151 |
Specifications
| Category code | 35 |
| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 18055 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 630 mm |
