Axial 630 mm Duct Fan – AL 630 D84U 01 CFG
The AL 630 D84U 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. Thanks to the application of the latest numerical design techniques, system efficiency has been significantly increased and the operating range has been expanded. The adjustable blades make this fan suitable for various applications within the commercial and industrial sectors.
Optimal Performance with Advanced Design
This fan features a lightweight and robust design that facilitates installation and handling. It is equipped with an IE3 motor that is 2-stage adjustable via a Dahlander switch, ensuring flexible and energy-efficient operation. The aerodynamically optimized blades contribute to increased efficiency and effective air displacement. This model is suitable for continuous operation at air temperatures up to 60 °C and provides reliable performance in various industrial and commercial ventilation systems. Delivered without a terminal box, but with a cable for easy connection of an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer known worldwide for its reliable and energy-efficient ventilation technologies. All products are developed according to the latest ERP (Energy Related Product) guidelines and guarantee long service life and excellent performance, even under the most demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544320995 |
| Manufacturer's item number | AL 630 D84U 01 CFG |
| Article number | 65170124 |
Specifications
| Category code | 35 |

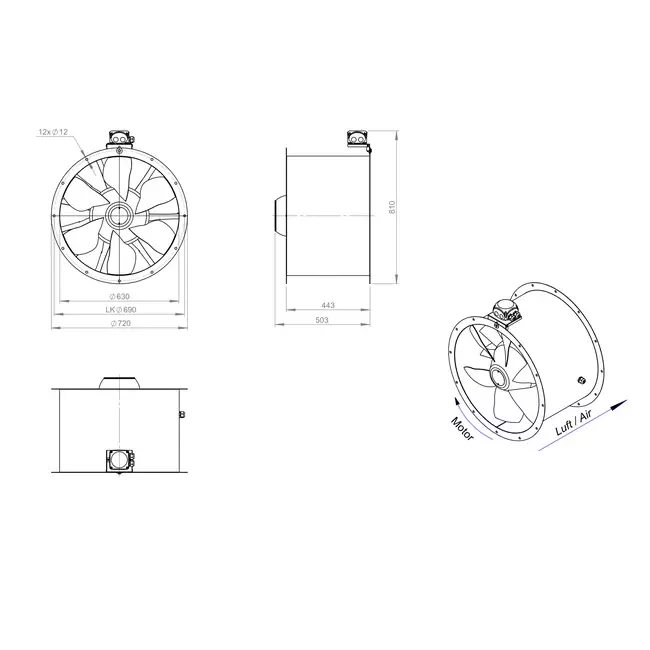

| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 25630 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 630 mm |
