Good points

Brand: Ruck
AC motor
Standard temperature
Frequency controlled

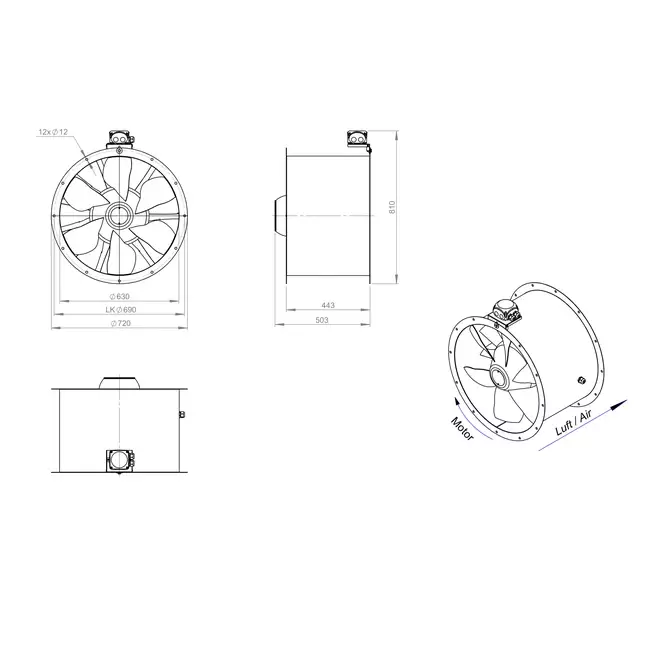

Axial 630 mm Duct Fan – AL 630 D6 02 CFG

The AL 630 D6 02 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. By utilizing the latest numerical design techniques, system efficiency has been optimized and the operating range expanded. The adjustable blades make this fan versatile for various ventilation systems, from commercial to industrial applications.

Optimized Design for Efficient Performance

This fan features a lightweight, optimized design that simplifies installation and handling. Equipped with an IEC standard motor suitable for frequency control, you can easily adjust the fan to meet your specific needs. The aerodynamically optimized blades contribute to higher airflow and improved efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and provides reliable performance in various environments. Delivered without a terminal box, but with a cable for easy connection to an external switch.

Reliable Quality from Ruck

Ruck Ventilatoren GmbH is a leading German manufacturer with years of experience in ventilation technology. All products comply with current ERP (Energy Related Product) guidelines and guarantee high performance, reliability, and long service life in the most demanding applications.

More Information

Brand	Ruck ventilatoren GmbH
Category	Axial duct fan
GTIN	8719544321046
Manufacturer's item number	AL 630 D6 02 CFG
Article number	65170143

Specifications

Category code	35
Length	443 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IP55
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	18610 m³/h
Suitable for frequency control	Yes
Suitable for transformer control	Yes
Suitable for electronic control	No
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	630 mm
