Good points
- Brand: Ruck
- AC motor
- Standard temperature
- Frequency controlled

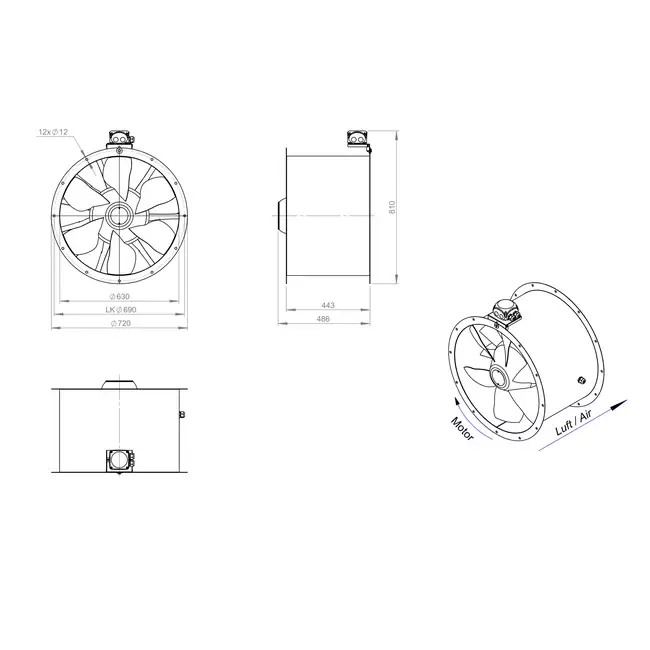

Axial 630 mm Duct Fan – AL 630 D6 01 CFG
The AL 630 D6 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. By utilizing the latest numerical design techniques, system efficiency has been improved and the operating range has been expanded. The adjustable blades ensure that this fan is versatile for various applications in both commercial buildings and industry.
Robust Design for Versatile Applications
This fan features an optimized, lightweight design that simplifies installation and handling. It is equipped with an IEC standard motor suitable for frequency control, allowing you to efficiently tune the fan to your specific requirements. The aerodynamically optimized blades contribute to higher airflow and improved efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and can be applied in various industrial and commercial ventilation systems. Delivered without a terminal box, but with a cable for easy connection of an external switch.
Reliable Performance from Ruck
Ruck Ventilatoren GmbH is a German manufacturer known worldwide for its reliable, energy-efficient ventilation technologies. All products comply with the latest ERP (Energy Related Product) guidelines and are designed for long-lasting performance, even in the most demanding applications.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544321008 |
| Manufacturer's item number | AL 630 D6 01 CFG |
| Article number | 65170132 |
Specifications
| Category code | 35 |
| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 16590 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 630 mm |
