Good points

Brand: Ruck
AC motor
Standard temperature
Frequency controlled

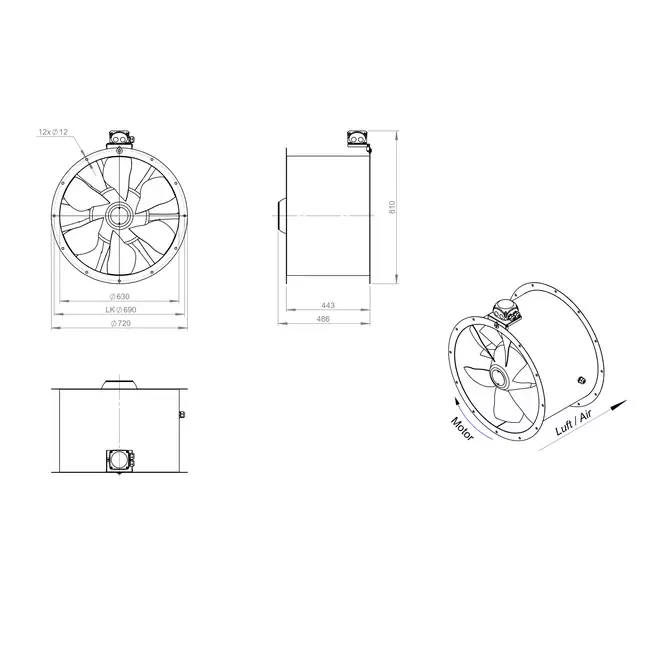

Axial 630 mm Duct Fan – AL 630 D4 03 CFG

The AL 630 D4 03 CFG from Ruck is an innovative axial fan with high efficiency, designed for medium pressure applications. Thanks to the application of the latest numerical design techniques, system efficiency has been increased and the operating range significantly expanded. The adjustable blades make this fan widely applicable in various ventilation systems, from commercial to industrial applications.

Efficient and Lightweight Design

This fan features a robust yet lightweight construction, ensuring easy installation and efficient handling. It is equipped with an IEC standard motor suitable for frequency control, allowing you to flexibly adjust the fan to your specific requirements. The aerodynamically optimized blades contribute to higher airflow and improved efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C. Delivered without a terminal box, but with a cable for easy connection of an external switch.

Reliable Quality from Ruck

Ruck Ventilatoren GmbH is a renowned German manufacturer of axial fans. All products are developed according to the current ERP (Energy Related Product) guidelines and guarantee reliable performance and energy efficiency, even under the most demanding conditions.

More Information

Brand	Ruck ventilatoren GmbH
Category	Axial duct fan
GTIN	8719544320964
Manufacturer's item number	AL 630 D4 03 CFG
Article number	65170113

Specifications

Category code	35
Length	443 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IP55
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	20790 m³/h
Suitable for frequency control	Yes
Suitable for transformer control	Yes
Suitable for electronic control	No
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	630 mm
