Good points
- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled

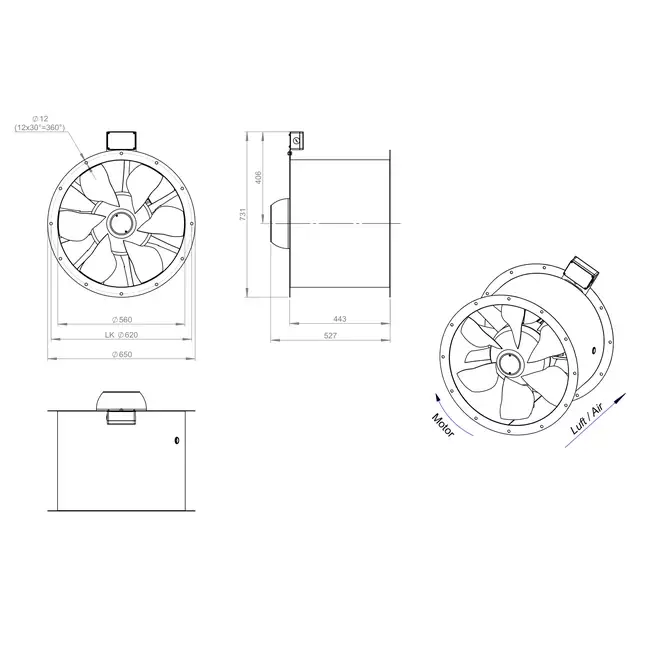

Axial 560 mm Duct Fan Flue Gas F400 – AL 560 D84U F4 02 CFG
The AL 560 D84U F4 02 CFG from Ruck is a powerful and energy-efficient axial fan, specifically designed for medium pressure applications and flue gas discharge in accordance with the F400 standard. Thanks to the application of the latest numerical design techniques, system efficiency has been enhanced and the operating range has been expanded. The adjustable blades make this fan versatile, suitable for both standard ventilation and smoke and heat extraction in case of fire (dual-use).
Optimized Design for Versatility
This fan features a lightweight and robust design that ensures easy installation and efficient handling. Equipped with an IE3 motor that is 2-stage adjustable via a Dahlander connection, you can flexibly tailor the fan to your specific requirements and optimize energy management. The aerodynamically optimized blades provide a higher airflow and more efficient performance. This model is suitable for continuous operation at air temperatures up to 60 °C and fully complies with the F400 standard for flue gas ventilation. Delivered without a terminal box, but with a cable for easy connection of an external switch.
Reliable Performance from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer with years of experience in ventilation technology. All products comply with the latest ERP (Energy Related Product) guidelines and offer reliable performance and energy efficiency, even in the most demanding applications.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321923 |
| Manufacturer's item number | AL 560 D84U F4 02 CFG |
| Article number | 65170750 |
Specifications
| Category code | 35 |
| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 21000 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 560 mm |
