- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled

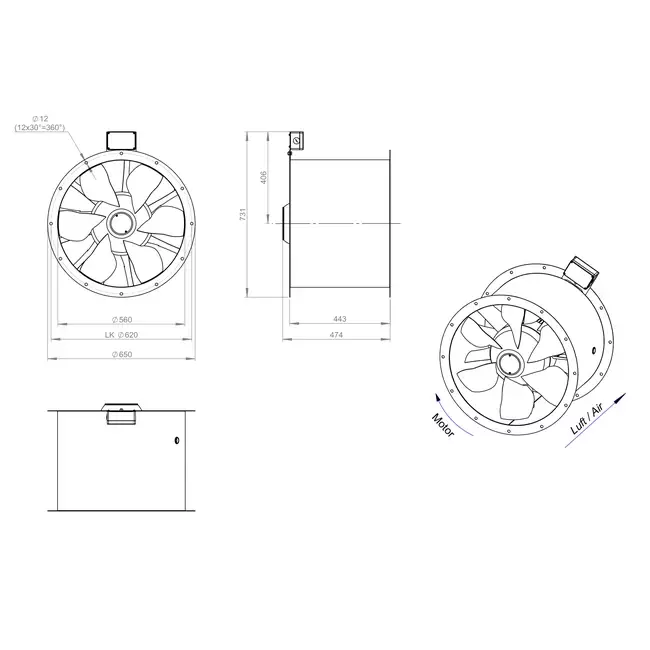

Axial 560 mm Duct Fan Flue Gas F400 – AL 560 D84U F4 01 CFG
The AL 560 D84U F4 01 CFG from Ruck is an innovative and energy-efficient axial fan, designed for medium pressure applications and flue gas discharge in accordance with the F400 standard. Thanks to the application of the latest numerical design techniques, system efficiency has been significantly increased and the operating range expanded. The adjustable blades make this fan suitable for both standard ventilation and smoke and heat extraction in case of fire (dual-use).
Optimized Design for Flexible Performance
This fan features an optimized, lightweight design that simplifies installation and handling. Equipped with an IE3 motor that is 2-stage adjustable via a Dahlander connection, you can start the fan flexibly and energy-efficiently. The aerodynamically optimized blades ensure increased efficiency and a more effective airflow. This model is suitable for continuous operation at air temperatures up to 60 °C and fully complies with the F400 standard. Delivered without a terminal box, but with a cable for easy connection of an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a renowned German manufacturer with years of experience in ventilation technology. Their products are designed for long-lasting performance, comply with the latest ERP (Energy Related Product) guidelines, and provide reliable performance under the most demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321916 |
| Manufacturer's item number | AL 560 D84U F4 01 CFG |
| Article number | 65170747 |
Specifications
| Category code | 35 |
| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 17500 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 560 mm |
