Good points
- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled

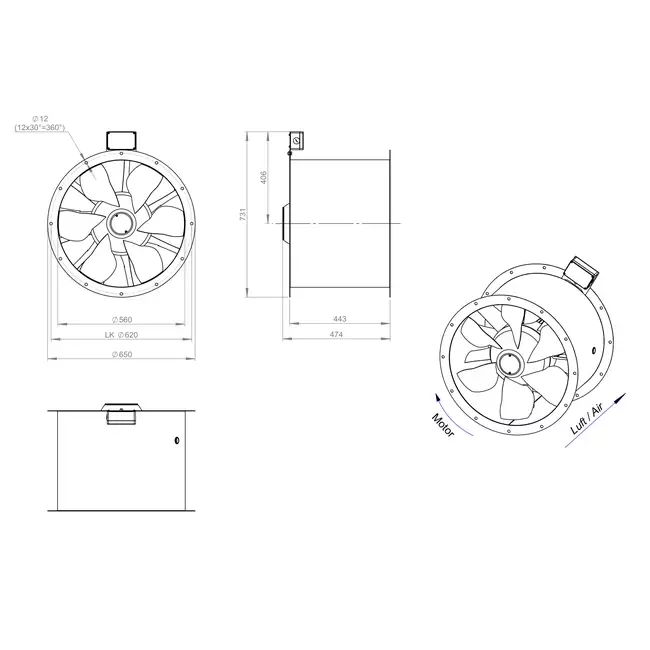

Axial 560 mm Duct Fan Flue Gas F400 – AL 560 D4 F4 02 CFG
The AL 560 D4 F4 02 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications and flue gas extraction according to the F400 standard. Thanks to the application of the latest numerical design techniques, the system efficiency has been significantly improved and the operating range has been expanded. The adjustable blades provide flexible usability, making it ideal for both regular ventilation and smoke and heat extraction in case of fire (dual-use).
Optimized Design for Flexibility and Efficiency
This fan features a lightweight, optimized design that simplifies installation and handling. It is equipped with an IEC standard motor suitable for frequency control, allowing you to efficiently tune the fan to your specific requirements. The aerodynamically optimized blades contribute to better airflow and higher efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and fully complies with the F400 standard for flue gas ventilation. Delivered without a terminal box, but with a cable for easy connection of an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer known worldwide for its reliable and innovative products. With years of experience and a focus on energy efficiency, all products comply with the latest ERP (Energy Related Product) guidelines and are designed for long, trouble-free performance in the most demanding applications.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321893 |
| Manufacturer's item number | AL 560 D4 F4 02 CFG |
| Article number | 65170741 |
Specifications
| Category code | 35 |
| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 17500 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 560 mm |
