Good points
- AC motor
- Rookgas F400
- Frequency controlled
- Brand: Ruck

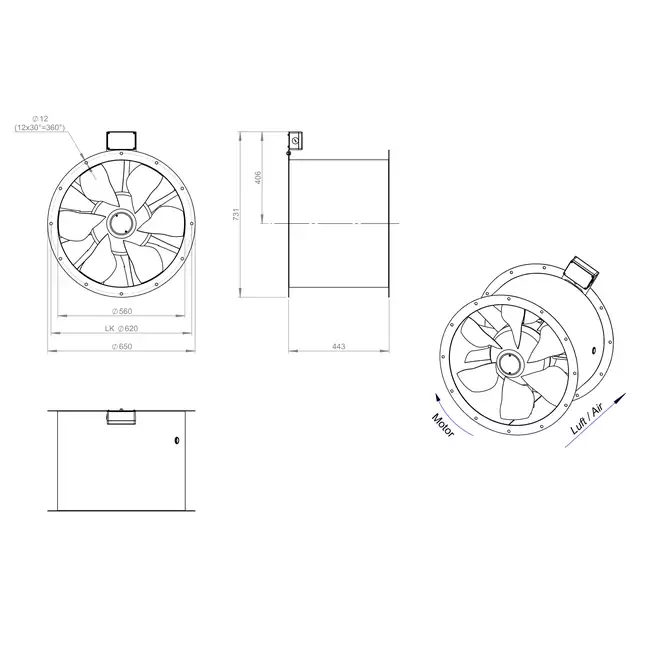

Axial 560 mm Duct Fan Flue Gas F400 – AL 560 D4 F4 01 CFG
The AL 560 D4 F4 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications and flue gas extraction according to the F400 standard. By utilizing the latest numerical design techniques, system efficiency has been improved and the operating range expanded. This fan is ideal for both standard ventilation and smoke and heat extraction in case of fire (dual-use), thanks to the adjustable blades.
Optimized Design for Flexible Use
This fan features a lightweight and robust design, ensuring easy installation and efficient handling. Equipped with an IEC standard motor suitable for frequency control, the fan can be easily adjusted to the desired performance. The aerodynamically optimized blades ensure efficient airflow and enhance system efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and fully complies with the F400 standard for flue gas ventilation. Delivered without a terminal box, but with a cable for easy connection of an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of axial fans. With years of experience in ventilation technology, Ruck delivers reliable and energy-efficient products that meet the latest ERP (Energy Related Product) guidelines. The fans are designed for long-lasting performance, even in the most demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544322296 |
| Manufacturer's item number | AL 560 D4 F4 01 CFG |
| Article number | 65170941 |
Specifications
| Category code | 35 |
| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 14050 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 560 mm |
