Good points
- Brand: Ruck
- AC motor
- Rookgas F300
- Frequency controlled

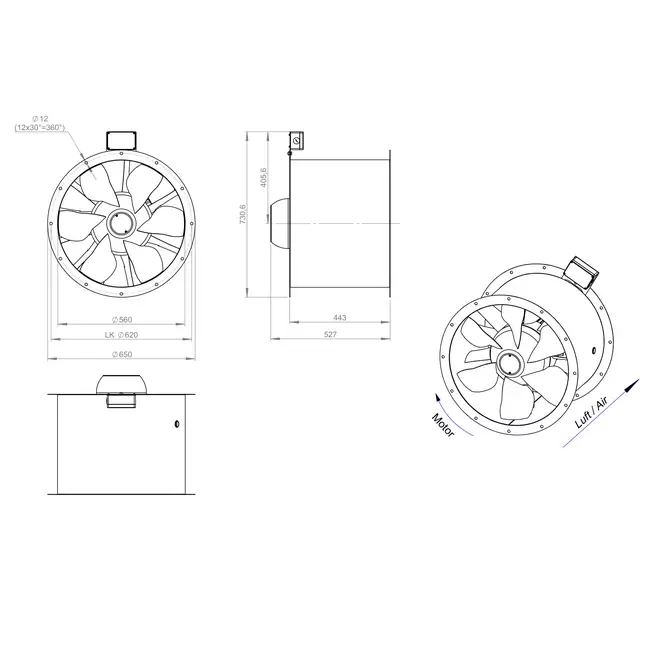

Axial 560 mm Duct Fan Flue Gas F300 – AL 560 D84U F3 02 CFG
The AL 560 D84U F3 02 CFG from Ruck is an innovative and high-efficiency axial fan, specifically developed for flue gas extraction and daily ventilation. Utilizing the latest numerical simulation techniques, this model has been optimized for maximum system efficiency. Thanks to the adjustable blade angles, this fan offers a wide operating range and is suitable for various applications. This model is F300 certified and designed for continuous use up to 60 °C, making it perfect as a dual-use fan: for regular air exchange and flue gas heat extraction during a fire.
Robust Design with Optimized Weight
The AL 560 D84U F3 02 CFG is designed with a robust yet lightweight construction, ensuring easy installation and maintenance. The design has been optimized for weight reduction without compromising durability or performance. The fan is equipped with an IE3 motor that can be controlled in two speed stages via a Dahlander connection, providing flexible and energy-efficient operation. The aerodynamically shaped rotor and stator blades guarantee high efficiency in medium-pressure applications. Due to its size, this model is excellently suited for medium-sized commercial and industrial installations.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German manufacturer with years of experience in ventilation technology. With over 300 employees, they develop innovative solutions daily that meet the highest standards in fire safety and energy efficiency. This AL 560 D84U F3 02 CFG also complies with the latest ERP guidelines and offers reliable performance under all conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544322487 |
| Manufacturer's item number | AL 560 D84U F3 02 CFG |
| Article number | 65171148 |
Specifications
| Category code | 35 |
| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 21000 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 560 mm |
