Good points

Brand: Ruck
AC motor
Rookgas F300
Frequency controlled

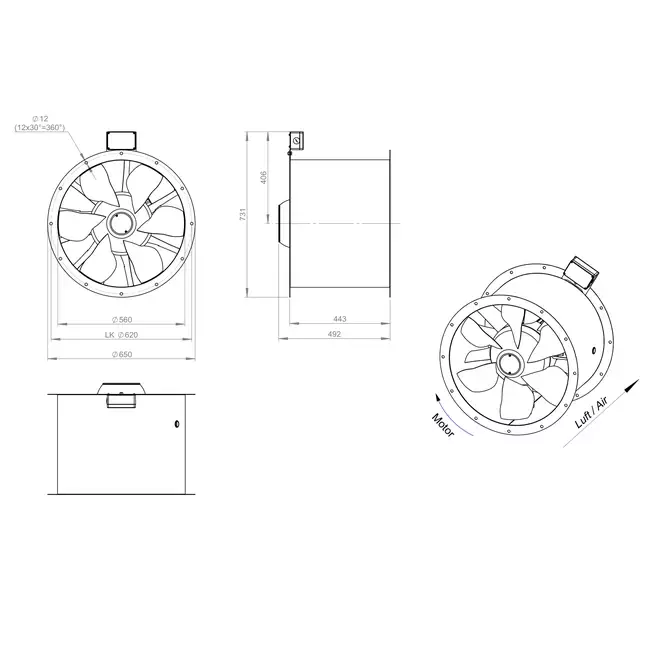

Axial 560 mm Duct Fan Flue Gas F300 – AL 560 D4 F3 04 CFG

The AL 560 D4 F3 04 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications and flue gas discharge in accordance with the F300 standard. Thanks to the application of the latest numerical design techniques, system efficiency has been optimized and the operating range has been expanded. The adjustable blades make this fan ideal for both regular ventilation and smoke and heat extraction in case of fire (dual-use).

Optimized Design for Versatility

This fan features a lightweight and robust construction that significantly facilitates installation and handling. Equipped with an IEC standard motor suitable for frequency control, the fan can be flexibly adjusted to the required performance. The aerodynamically optimized blades ensure higher airflow and more efficient performance. This model is suitable for continuous operation at air temperatures up to 60 °C and fully complies with the F300 standard for flue gas ventilation. Delivered without a terminal box, but with a cable for easy connection of an external switch.

Reliable Quality from Ruck

Ruck Ventilatoren GmbH is a leading German manufacturer known for its reliable and energy-efficient ventilation technologies. All products are developed according to the current ERP (Energy Related Product) guidelines and are designed for long-lasting performance in the most demanding conditions.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544321930
Manufacturer's item number	AL 560 D4 F3 04 CFG
Article number	65170754

Specifications

Category code	35
Length	443 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	21000 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	560 mm
