- Brand: Ruck
- AC motor
- Standard temperature
- Frequency controlled

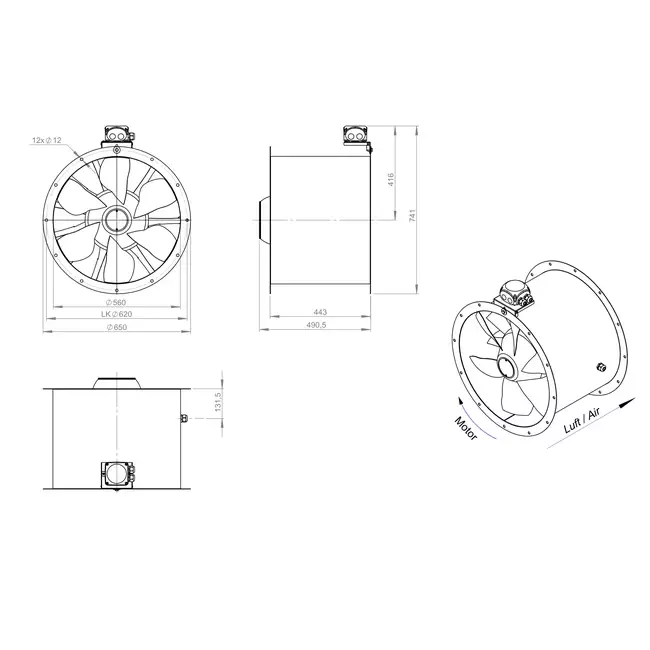

Axial 560 mm Duct Fan – AL 560 D84U 02 CFG
The AL 560 D84U 02 CFG from Ruck is an innovative, high-efficiency axial fan specifically designed for medium pressure applications. By utilizing the latest numerical design techniques, the system efficiency has been enhanced and the operating range expanded. The adjustable blades make this fan ideal for various ventilation needs, from commercial buildings to industrial applications.
Optimized Design for Energy Efficiency
This fan features a lightweight, optimized design that simplifies installation and handling. Equipped with an IE3 motor that is 2-stage adjustable via a Dahlander switch, you can efficiently start the fan and deploy it flexibly. The aerodynamically optimized blades ensure increased efficiency, resulting in improved airflow and lower energy costs. This model is suitable for continuous operation at air temperatures up to 60 °C. Delivered without a terminal box, but with a cable for quick connection to an external switch.
German Quality and Durability
Ruck Ventilatoren GmbH is a leading German manufacturer of axial fans. With years of experience and a focus on innovation and energy efficiency, all products comply with the latest ERP (Energy Related Product) guidelines and guarantee reliable performance under various conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544320919 |
| Manufacturer's item number | AL 560 D84U 02 CFG |
| Article number | 65170095 |
Specifications
| Category code | 35 |
| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 21000 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 560 mm |
