Axial 560 mm Duct Fan – AL 560 D84U 01 CFG
The AL 560 D84U 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. Thanks to the latest numerical design techniques, system efficiency has been significantly improved and the operating range has been broadened. The adjustable blade angles provide flexible usability, making it ideal for various ventilation systems in both commercial buildings and industrial applications.
Optimized Design with Flexible Motor Control
This fan features a lightweight and optimized design that simplifies installation and handling. Equipped with an IE3 motor that can be controlled in two stages via a Dahlander switch, you can easily tune the fan for energy-efficient and flexible performance. The aerodynamically optimized blades ensure higher airflow and improved efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C. Delivered without a terminal box, but with a cable for easy connection to an external switch.
German Quality and Durability
Ruck Ventilatoren GmbH is a renowned German manufacturer known for its reliable and energy-efficient ventilation technologies. All products are produced according to current ERP (Energy Related Product) guidelines, ensuring sustainable performance and long-lasting reliability in the most demanding environments.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544320902 |
| Manufacturer's item number | AL 560 D84U 01 CFG |
| Article number | 65170073 |
Specifications
| Category code | 35 |

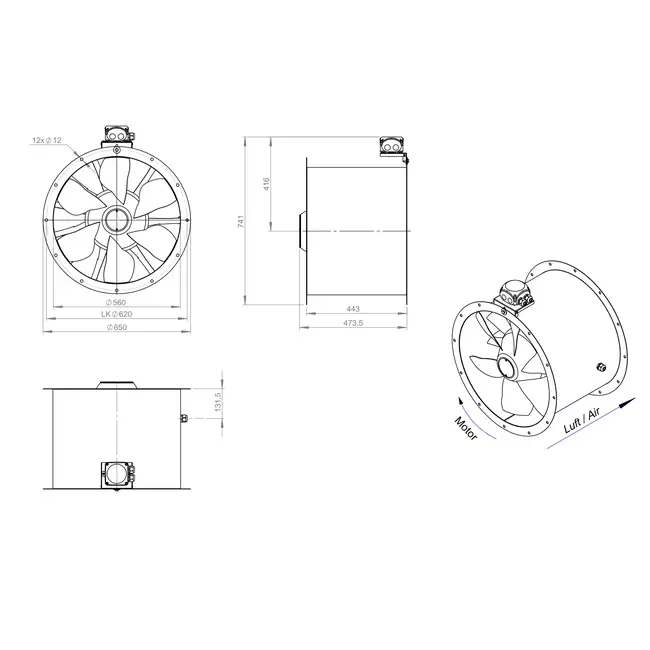

| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 17500 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 560 mm |
