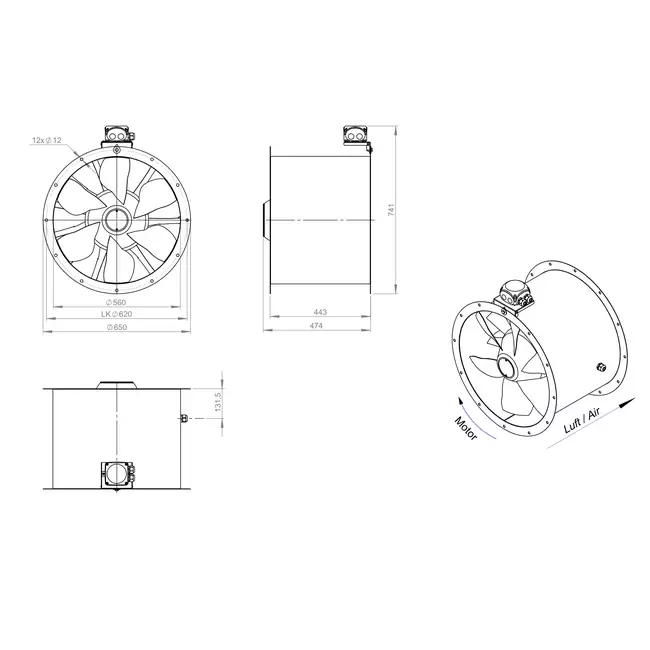

Axial 560 mm Duct Fan – AL 560 D4 02 CFG
The AL 560 D4 02 CFG from Ruck is an innovative and highly efficient axial fan designed for medium pressure applications. Thanks to the latest numerical design techniques, the system efficiency has been improved and the operating range has been expanded. The adjustable blades make this fan versatile for various ventilation systems, from commercial to industrial applications.
Robust and User-Friendly Design
This fan features a lightweight, optimized design that facilitates installation and ensures efficient handling. It is equipped with an IEC standard motor suitable for frequency control, allowing you to finely tune the fan to the required performance. The aerodynamically optimized blades contribute to higher airflow and more efficient performance. This model is suitable for continuous operation at air temperatures up to 60 °C and provides reliable performance under various conditions. Delivered without a terminal box, but with a cable for easy connection of an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer known for its reliable, innovative ventilation technologies. All products are developed according to current ERP (Energy Related Product) guidelines and guarantee excellent performance, reliability, and long service life.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544320704 |
| Manufacturer's item number | AL 560 D4 02 CFG |
| Article number | 65169791 |
Specifications
| Category code | 35 |
| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 17500 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 560 mm |
