Good points
- Brand: Ruck
- AC motor
- 14050 m3/h
- Frequency controlled

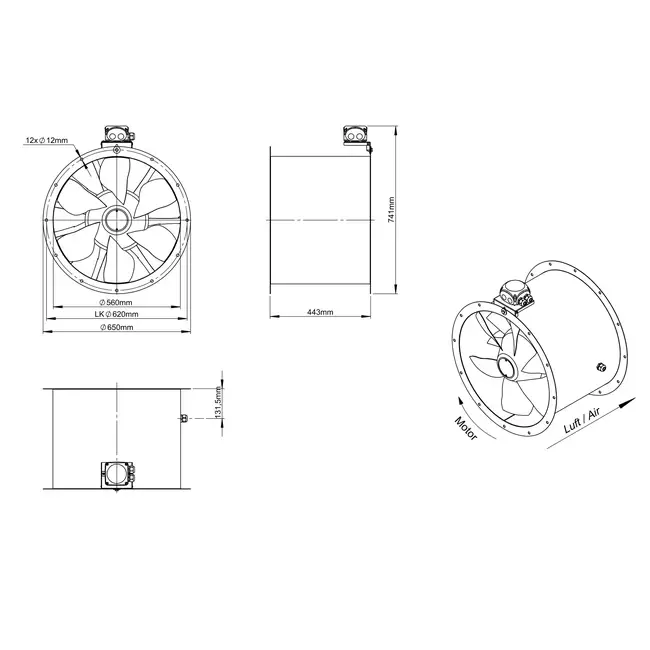

Axial 560 mm Duct Fan – AL 560 D4 01 CFG
The AL 560 D4 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. Thanks to advanced numerical design techniques, both the efficiency and operating range have been significantly increased. By utilizing various blade settings, the fan can be flexibly adjusted for a wide range of applications. This fan is particularly suitable for use in industrial ventilation systems, parking garages, production environments, and larger air ducts where reliable performance is essential.
Robust Design with Optimized Weight
The axial fan features a robust yet lightweight construction, ensuring easy installation and efficient handling. Due to an optimized product design, the weight has been reduced without compromising durability. The fan is equipped with a high energy-efficient IEC standard motor (IE3) and is suitable for frequency control. The aerodynamically optimized blades contribute to increased system efficiency. The AL series is available in diameters up to 1250 mm and is designed for continuous operation at air temperatures up to 60 °C. This model is supplied without a terminal box but comes with a cable to which a switch can be easily connected.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. They are market leaders in the field of axial fans. With over 300 dedicated employees, they work daily on new developments and technologies. The company ensures quality assurance to deliver an excellent product in accordance with the latest ERP (Energy Related Product) requirements.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544320193 |
| Manufacturer's item number | AL 560 D4 01 CFG |
| Article number | 65167203 |
Specifications
| Category code | 35 |
| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 14050 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 560 mm |
