Axial 500 mm Duct Fan Flue Gas F400 – AL 500 D42U F4 01 CFG
The AL 500 D42U F4 01 CFG from Ruck is an innovative and energy-efficient axial fan, designed for medium pressure applications and flue gas extraction in accordance with the F400 standard. By utilizing the latest numerical design techniques, the system efficiency has been significantly improved and the operating range has been expanded. Thanks to the adjustable blades, this fan is ideal for both regular ventilation and smoke and heat extraction during a fire (dual-use).
Efficient Design for Easy Installation
This fan features a lightweight and optimized design that greatly simplifies installation and handling. It is equipped with an IE3 motor that is 2-stage adjustable via a Dahlander connection, providing flexible and energy-efficient control. The aerodynamically optimized blades ensure higher airflow and more efficient performance. This model is designed for continuous operation at air temperatures up to 60 °C and fully complies with the F400 standard. Delivered without a terminal box, but with a cable for easy connection to an external switch.
Reliable Performance from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer of axial fans. With a strong focus on innovation, energy efficiency, and reliability, all products are developed according to current ERP (Energy Related Product) guidelines and are designed for long, trouble-free operation under demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321848 |
| Manufacturer's item number | AL 500 D42U F4 01 CFG |
| Article number | 65170716 |
Specifications
| Category code | 35 |

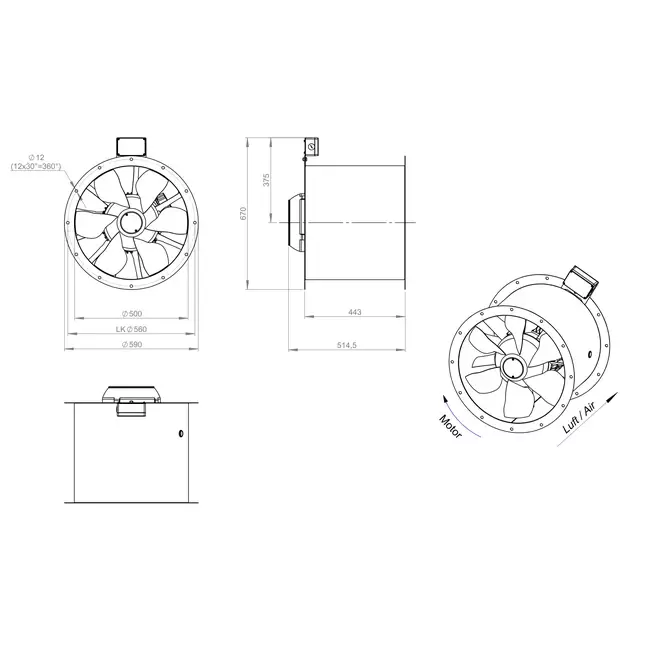

| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 18070 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 500 mm |
