Axial 500 mm Duct Fan Flue Gas F400 – AL 500 D4 F4 03 CFG

The AL 500 D4 F4 03 CFG from Ruck is a powerful, high-efficiency axial fan designed for medium pressure applications and flue gas extraction in accordance with the F400 standard. Thanks to the latest numerical design techniques, system efficiency has been optimized and the operating range has been expanded. This fan is suitable for both regular ventilation and smoke and heat extraction during a fire (dual-use), offering flexible deployment through adjustable blades.

Efficient Design for Quick Installation

This fan features a lightweight and optimized design for easy installation and efficient handling. It is equipped with an IEC standard motor suitable for frequency control. The aerodynamically optimized blades ensure efficient air displacement and contribute to higher efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and fully complies with the F400 standard. Delivered without a terminal box, but with a cable for quick connection to an external switch.

Quality and Reliability from Ruck

Ruck Ventilatoren GmbH is a leading German manufacturer with years of experience in axial fans. All products are developed according to current ERP (Energy Related Product) guidelines and are known for their reliability, energy efficiency, and long lifespan.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544321855
Manufacturer's item number	AL 500 D4 F4 03 CFG
Article number	65170722

Specifications

Category code	35

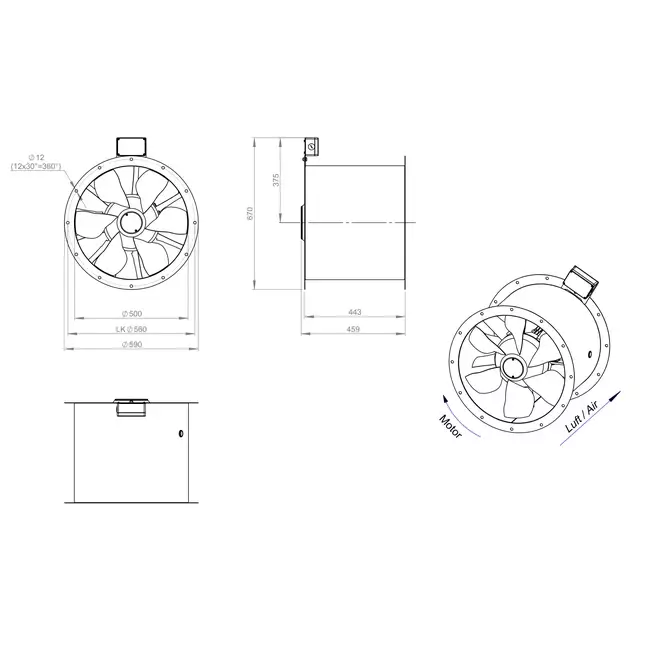

Length	443 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	14890 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	500 mm
