Good points
- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled

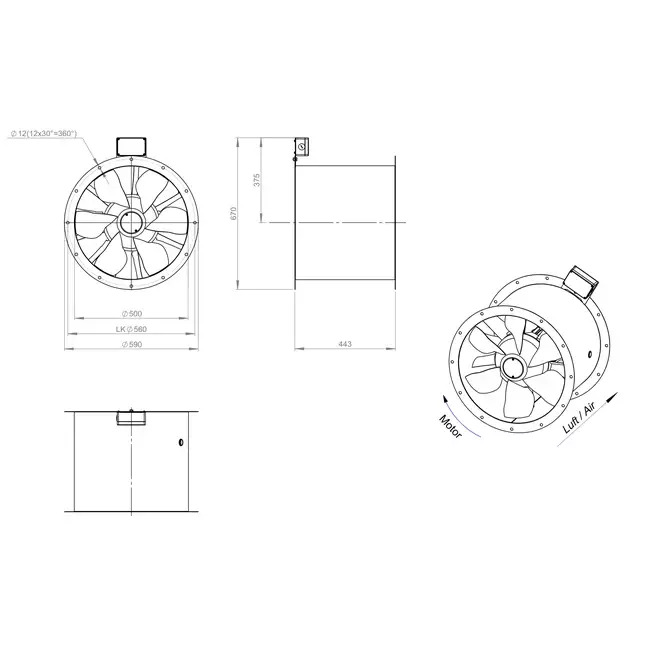

Axial 500 mm Duct Fan Flue Gas F400 – AL 500 D4 F4 02 CFG
The AL 500 D4 F4 02 CFG from Ruck is an innovative and efficient axial fan, specifically designed for medium pressure applications and flue gas discharge according to the F400 standard. Thanks to the latest numerical design techniques, the system efficiency has been optimized and the operating range expanded. The adjustable blades make this fan suitable for both regular ventilation and smoke and heat extraction in case of fire (dual-use).
Optimized Design for Easy Installation
This fan features a lightweight, optimized design, ensuring quick installation and efficient handling. Equipped with an IEC standard motor suitable for frequency control, you can flexibly adjust the fan to your specific needs. The aerodynamically optimized blades contribute to higher system efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and fully complies with the F400 standard. Delivered without a terminal box, but with a cable for easy connection of an external switch.
Reliable Technology from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer with years of experience in ventilation technology. They are known for their focus on innovation, energy efficiency, and reliable products that meet the highest standards, such as the ERP (Energy Related Product) guidelines.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544322289 |
| Manufacturer's item number | AL 500 D4 F4 02 CFG |
| Article number | 65170938 |
Specifications
| Category code | 35 |
| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 12760 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 500 mm |
