Good points

Brand: Ruck
AC motor
Rookgas F400
Frequency controlled

Axial 500 mm Duct Fan Flue Gas F400 – AL 500 D4 F4 01 CFG

The AL 500 D4 F4 01 CFG from Ruck is a powerful and efficient axial fan designed for medium pressure applications, specifically for flue gas extraction according to the F400 standard. Thanks to the latest numerical design techniques, system efficiency has been optimized and the operating range expanded. This fan is suitable for both regular ventilation and smoke and heat extraction in case of fire (dual-use), thanks to the adjustable blades.

Robust and Practical Design

This fan features a lightweight, optimized design that significantly facilitates installation and handling. It is equipped with an IEC standard motor suitable for frequency control. The aerodynamically optimized blades ensure efficient airflow and improve system efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and fully complies with the F400 standard. Delivered without a terminal box, but with a cable for easy connection of an external switch.

Reliable Quality from Ruck

Ruck Ventilatoren GmbH is a German manufacturer known worldwide for its high-quality ventilation technology. All products are developed according to current ERP (Energy Related Product) guidelines and offer proven reliability, energy efficiency, and durability in the most demanding applications.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544322272
Manufacturer's item number	AL 500 D4 F4 01 CFG
Article number	65170935

Specifications

Category code	35

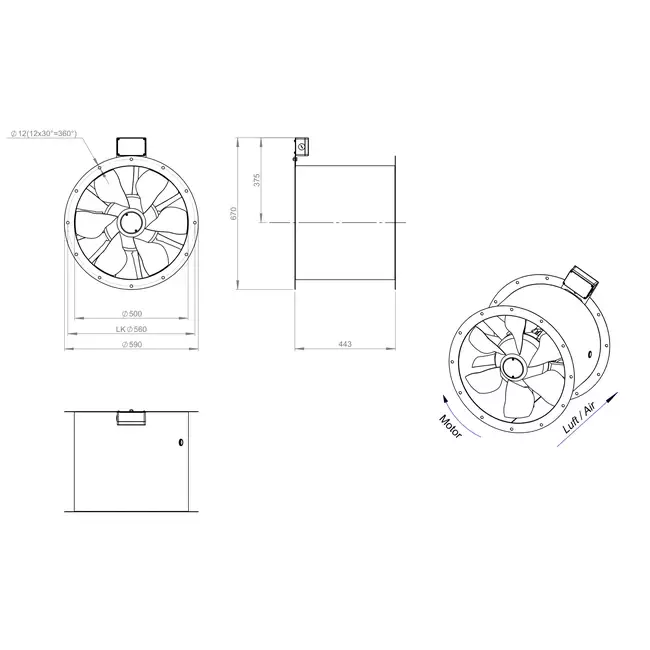

Length	443 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	11660 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	500 mm
