Good points
- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled

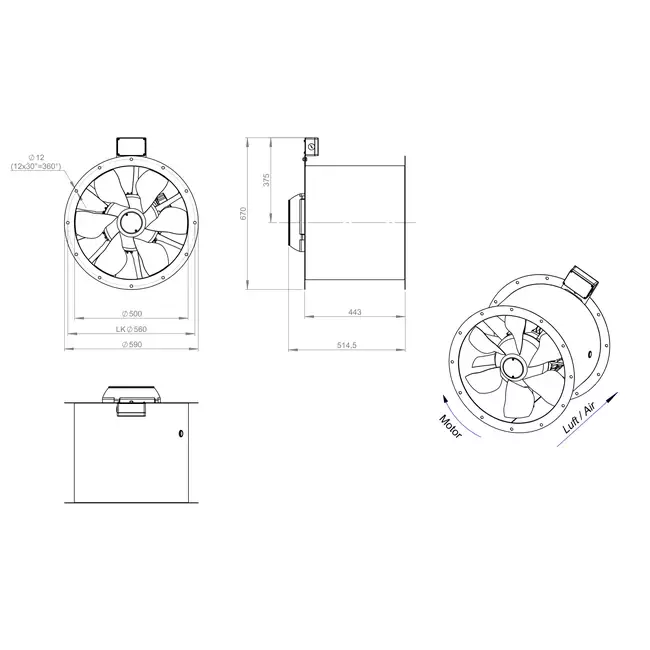

Axial 500 mm Duct Fan Flue Gas F400 – AL 500 D2 F4 03 CFG
The AL 500 D2 F4 03 CFG from Ruck is an innovative and high-efficiency axial fan, specifically developed for flue gas extraction and daily ventilation. Thanks to the use of the latest numerical calculation methods, this fan has been optimized for maximum system efficiency. With adjustable blade angles, this model offers a wide operating range, making it flexible for various applications. This fan is certified as an F400 flue gas fan and is suitable for continuous operation up to 60 °C. Thus, it is an ideal dual-use solution: for normal air exchange and flue gas heat extraction in case of fire.
Robust Design with Optimized Weight
The AL 500 D2 F4 03 CFG is designed with a sturdy yet lightweight construction. This makes both installation and maintenance easier. Thanks to the optimized design, the weight has been reduced without compromising performance or durability. This fan is equipped with an IEC standard motor of energy efficiency class IE3 and is fully suitable for frequency control. The aerodynamically shaped rotor and stator blades ensure high efficiency in medium pressure applications. The model is particularly suitable for commercial and industrial environments where both ventilation and fire safety are crucial.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German manufacturer with years of experience in high-quality ventilation solutions. With a team of over 300 specialists, they work daily on the development of innovative and reliable fans. All products comply with current ERP guidelines and the strictest requirements regarding fire safety and energy efficiency. This ensures top quality – even under the most demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544322630 |
| Manufacturer's item number | AL 500 D2 F4 03 CFG |
| Article number | 65171216 |
Specifications
| Category code | 35 |
| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 22430 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 500 mm |
