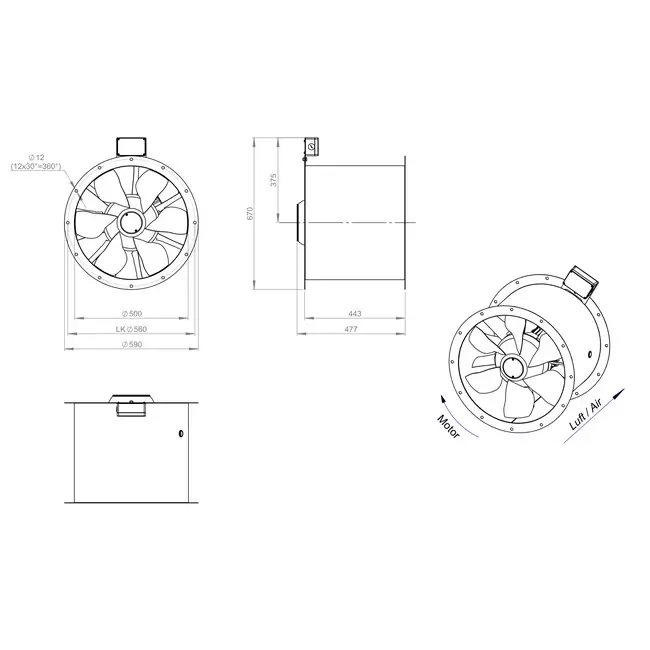

Axial 500 mm Duct Fan Flue Gas F400 – AL 500 D2 F4 02 CFG
The AL 500 D2 F4 02 CFG from Ruck is an advanced and efficient axial fan designed for medium pressure applications, specifically for flue gas extraction in accordance with the F400 standard. Thanks to the latest numerical design techniques, the system efficiency has been enhanced, and the operating range has been significantly increased. The adjustable blades provide a wide application range, suitable for both daily ventilation and smoke and heat extraction during a fire (dual-use).
User-Friendly and Efficient Design
The fan is lightweight and features an optimized design that ensures easy installation and efficient handling. It is equipped with an IEC standard motor suitable for frequency control. The aerodynamically optimized blades ensure optimal airflow and increased efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and fully complies with the F400 specification. Delivered without a terminal box, but with a cable for easy connection to an external switch.
Quality and Reliability from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer with years of experience in ventilation technology. The products are known for their high quality standards, reliable performance, and long lifespan, developed in accordance with the latest ERP (Energy Related Product) guidelines.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321817 |
| Manufacturer's item number | AL 500 D2 F4 02 CFG |
| Article number | 65170706 |
Specifications
| Category code | 35 |
| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 17930 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 500 mm |
