Axial 500 mm Duct Fan Flue Gas F300 – AL 500 D42U F3 01 CFG

The AL 500 D42U F3 01 CFG from Ruck is an innovative and high-efficiency axial fan, specifically designed for flue gas extraction and daily ventilation. Thanks to the application of the latest numerical simulation techniques, the design has been optimized for maximum system efficiency. The adjustable blade positions provide a wide operating range, making this fan versatile for various situations. This model is certified as an F300 flue gas fan and is suitable for continuous operation up to 60 °C. Thus, it is a reliable solution for both daily air exchange and smoke heat extraction in case of fire (dual-use).

Robust Design with Optimized Weight

The AL 500 D42U F3 01 CFG is built with a sturdy yet lightweight construction, making installation and maintenance easier. The product design has been optimized with a focus on weight reduction without compromising performance or durability. The fan is equipped with an energy-efficient IE3 motor with two-speed control via a Dahlander switch. This allows for efficient switching between different air volumes and power levels. The aerodynamically shaped rotor and stator blades contribute to high efficiency in medium-pressure applications. This fan is suitable for both industrial and commercial environments.

Quality Guaranteed

Ruck Ventilatoren GmbH is a leading German manufacturer known for its high-quality ventilation technology. With over 300 skilled professionals employed, they develop reliable solutions for flue gas extraction on a daily basis. All products comply with current ERP guidelines and the strictest requirements regarding energy efficiency and fire safety. With the AL series, you choose certainty, efficiency, and sustainability in one.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544322463
Manufacturer's item number	AL 500 D42U F3 01 CFG
Article number	65171134

Specifications

Category code	35

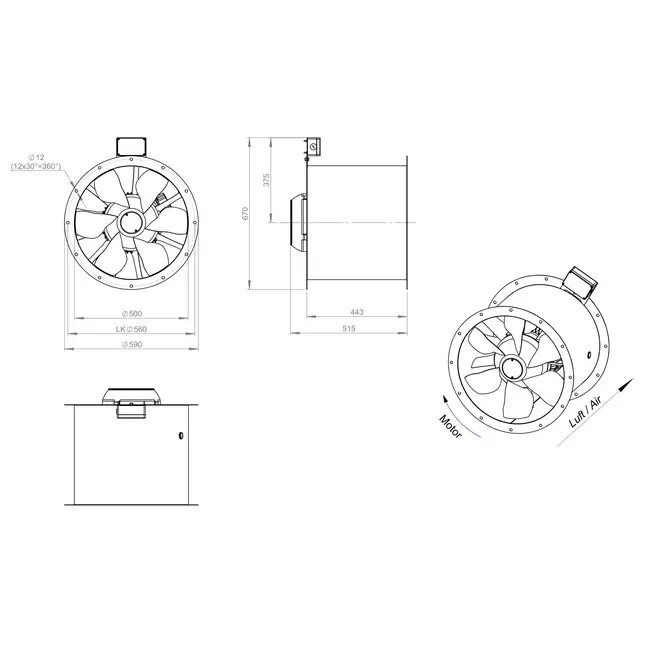

Length	443 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	18070 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	500 mm
