Good points

Brand: Ruck
AC motor
Rookgas F300
Frequency controlled

Axial 500 mm Duct Fan Flue Gas F300 – AL 500 D4 F3 03 CFG

The AL 500 D4 F3 03 CFG from Ruck is an advanced axial fan specifically designed for medium pressure applications and flue gas discharge according to the F300 standard. By applying the latest numerical design techniques, system efficiency has been improved and the operating range has been expanded. Thanks to the adjustable blades, this fan is versatile for both regular ventilation and smoke and heat extraction in case of fire (dual-use).

Optimized Design for Flexible Application

This fan features a lightweight, optimized design that significantly simplifies installation and handling. Equipped with an IEC standard motor suitable for frequency control, you can flexibly adjust the fan to your specific requirements. The aerodynamically optimized blades contribute to high airflow and energy efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and fully complies with the F300 specification. Delivered without a terminal box, but with a cable for easy connection of an external switch.

Ruck: Reliable Technology

Ruck Ventilatoren GmbH is a renowned German manufacturer known for its innovative ventilation technologies. All products are developed according to current ERP (Energy Related Product) guidelines and offer reliable performance and durability, even under the most demanding conditions.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544321886
Manufacturer's item number	AL 500 D4 F3 03 CFG
Article number	65170734

Specifications

Category code	35

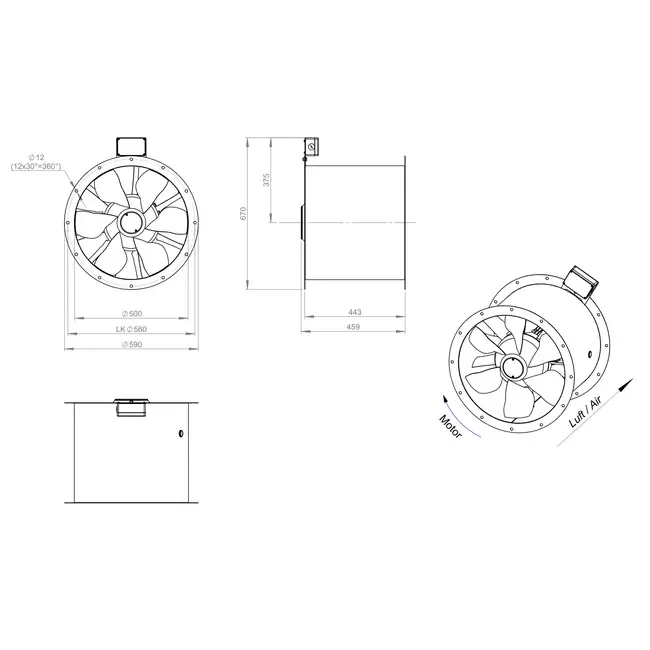

Length	443 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	14890 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	500 mm
