Good points

Brand: Ruck
AC motor
Rookgas F300
Frequency controlled

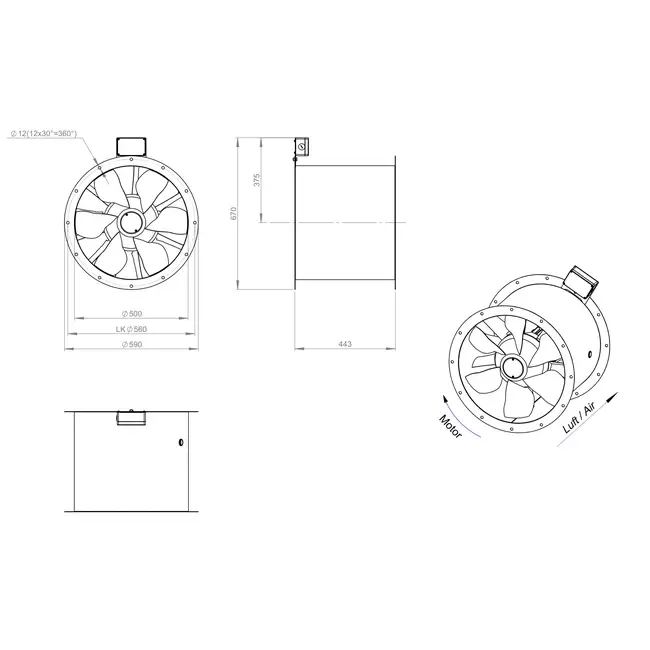

Axial 500 mm Duct Fan Flue Gas F300 – AL 500 D4 F3 02 CFG

The AL 500 D4 F3 02 CFG from Ruck is a high-efficiency axial fan suitable for medium pressure applications and certified for flue gas discharge according to the F300 standard. Thanks to the application of the latest numerical design techniques, system efficiency has been improved and the operating range has been expanded. With adjustable blades, this fan is suitable for both regular ventilation and smoke and heat extraction in case of fire (dual-use).

Compact and Efficient Design

This fan features a lightweight, optimized design that makes installation and handling easy. It is equipped with an IEC standard motor suitable for frequency control, allowing for flexible use in various situations. The aerodynamically shaped blades ensure high airflow and energy efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and meets the F300 specification. Delivered without a terminal box, but with a cable for easy connection of an external switch.

Reliable Performance from Ruck

Ruck Ventilatoren GmbH is a German manufacturer known for its reliable, innovative, and energy-efficient ventilation solutions. All products comply with current ERP (Energy Related Product) guidelines and are developed for stable performance under demanding conditions.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544322333
Manufacturer's item number	AL 500 D4 F3 02 CFG
Article number	65170970

Specifications

Category code	35
Length	443 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	12760 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	500 mm
