Good points
- Brand: Ruck
- AC motor
- Rookgas F300
- Frequency controlled
Axial 500 mm Duct Fan Flue Gas F300 – AL 500 D2 F3 02 CFG
The AL 500 D2 F3 02 CFG from Ruck is a powerful axial fan designed for medium pressure applications, specifically engineered for flue gas extraction according to the F300 standard. Thanks to the application of the latest numerical design techniques, system efficiency has been enhanced and the operating range expanded. The adjustable blades make this fan suitable for both daily ventilation and smoke and heat extraction during a fire (dual-use).
Sleek Design and Reliable Operation
This fan is lightweight and features an optimized construction for quick installation and efficient handling. It is equipped with an IEC standard motor suitable for frequency control. The aerodynamically shaped blades ensure optimal air displacement and higher efficiency. This model is designed for continuous operation at air temperatures up to 60 °C and fully complies with the F300 specification. Delivered without a terminal box, but with a cable for easy connection to an external switch.
Robust Technology from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer with years of experience in ventilation technology. All products are produced according to current ERP (Energy Related Product) guidelines and guarantee quality, reliability, and performance in critical situations.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321879 |
| Manufacturer's item number | AL 500 D2 F3 02 CFG |
| Article number | 65170729 |
Specifications
| Category code | 35 |

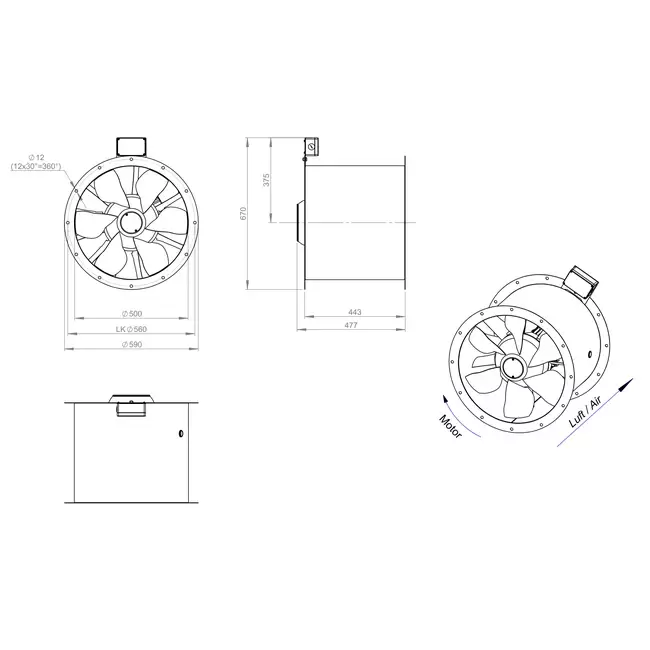

| Length | 443 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 17930 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 500 mm |
