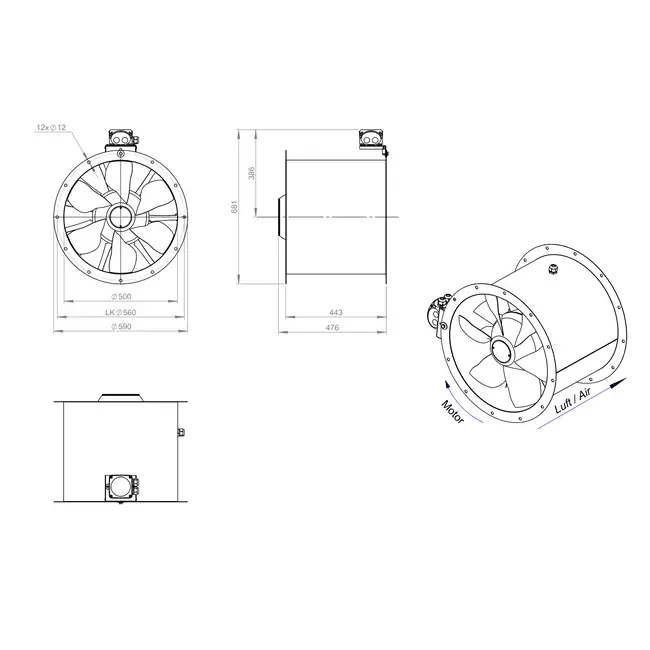

Axial 500 mm Duct Fan – AL 500 D42U 02 CFG

The AL 500 D42U 02 CFG from Ruck is an efficient axial fan designed for medium pressure applications. Thanks to the latest numerical design techniques, the system efficiency has been increased and the operating range significantly expanded. With adjustable blades, this fan is versatile for various applications in utility and industry.

Optimized Design with Dahlander Control

This fan features a lightweight, optimized construction for easy installation and efficient handling. The IE3 motor is 2-stage adjustable via a Dahlander switching, providing flexible and energy-efficient control. The aerodynamically optimized blades contribute to higher system efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C. It is supplied without a terminal box, but includes a cable for direct connection to an external switch.

Robust Technology from Ruck

Ruck Ventilatoren GmbH is a leading manufacturer in the field of axial fans. All products are developed according to current ERP (Energy Related Product) guidelines and are known for their reliability, performance, and durability in professional environments.

More Information

Brand	Ruck ventilatoren GmbH
Category	Axial duct fan
GTIN	8719544320896
Manufacturer's item number	AL 500 D42U 02 CFG
Article number	65170069

Specifications

Category code	35
Length	443 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IP55
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	15480 m³/h
Suitable for frequency control	Yes
Suitable for transformer control	Yes
Suitable for electronic control	No
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	500 mm
