Good points

Brand: Ruck
AC motor
Standard temperature
Frequency controlled

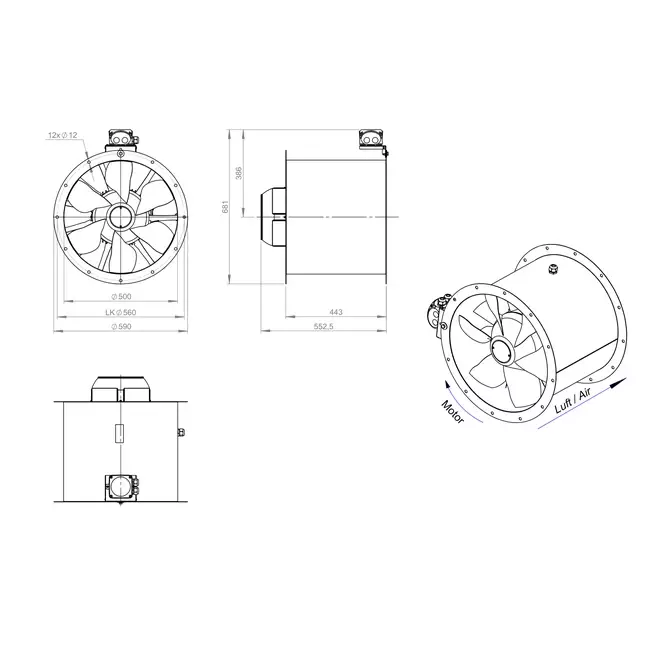

Axial 500 mm Duct Fan – AL 500 D42U 01 CFG

The AL 500 D42U 01 CFG from Ruck is an innovative axial fan with high energy efficiency, designed for medium pressure applications. By employing advanced numerical design techniques, the system efficiency has been enhanced and the operating range has been broadened. The adjustable blades make this fan versatile for various applications in commercial and industrial settings.

Lightweight Design with Smart Motor Control

This fan features an optimized, lightweight design that ensures easy installation and efficient handling. It is equipped with an IE3 motor that is 2-stage adjustable via a Dahlander connection, providing flexible and energy-saving control. The aerodynamically shaped blades contribute to high system efficiency. Suitable for continuous operation at air temperatures up to 60 °C. Delivered without a terminal box, but with a cable for easy connection to an external switch.

German Quality from Ruck

Ruck Ventilatoren GmbH is a reliable partner in ventilation technology. With years of experience and a focus on quality, performance, and energy efficiency, all fans comply with current ERP (Energy Related Product) guidelines and are built for long-lasting use.

More Information

Brand	Ruck ventilatoren GmbH
Category	Axial duct fan
GTIN	8719544320926
Manufacturer's item number	AL 500 D42U 01 CFG
Article number	65170101

Specifications

Category code	35
Length	443 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IP55
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	18070 m³/h
Suitable for frequency control	Yes
Suitable for transformer control	Yes
Suitable for electronic control	No
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	500 mm
