Good points

Brand: Ruck
AC motor
Standard temperature
Frequency controlled

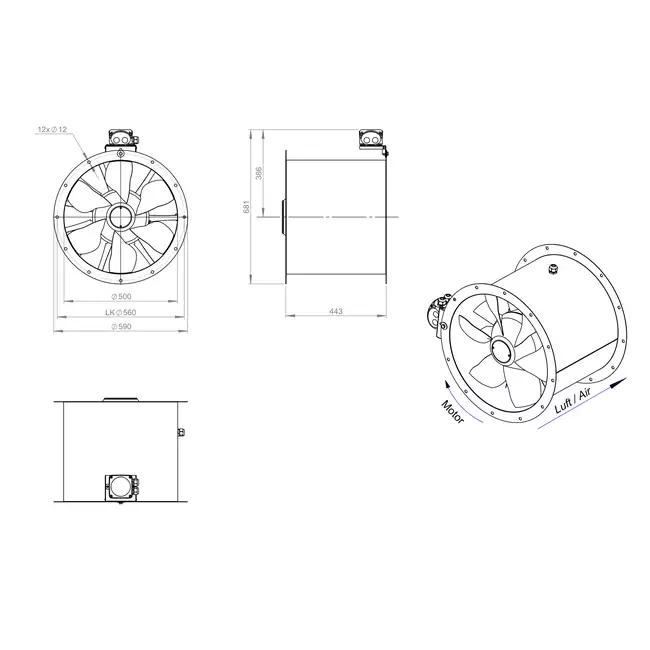

Axial 500 mm Duct Fan – AL 500 D4 03 CFG

The AL 500 D4 03 CFG from Ruck is a powerful and efficient axial fan, designed for medium pressure applications. Utilizing the latest numerical design techniques, the system efficiency has been optimized and the operating range has been expanded. Thanks to the adjustable blades, this fan is widely applicable for various ventilation systems in commercial and industrial applications.

User-Friendly and Optimized Design

This fan features a lightweight, robust construction that simplifies installation and makes handling more efficient. It is equipped with an IEC standard motor suitable for frequency control. The aerodynamically shaped blades ensure smooth air displacement and contribute to high energy efficiency. Designed for continuous operation at air temperatures up to 60 °C. Delivered without a terminal box, but with a cable for direct connection to an external switch.

Reliable Technology from Ruck

Ruck Ventilatoren GmbH is a leading German manufacturer, known for its reliable and innovative ventilation solutions. All products are developed according to the latest ERP (Energy Related Product) guidelines and are built for stable performance under various conditions.

More Information

Brand	Ruck ventilatoren GmbH
Category	Axial duct fan
GTIN	8719544320957
Manufacturer's item number	AL 500 D4 03 CFG
Article number	65170110

Specifications

Category code	35
Length	443 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IP55
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	14890 m³/h
Suitable for frequency control	Yes
Suitable for transformer control	Yes
Suitable for electronic control	No
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	500 mm
