Good points

Brand: Ruck
AC motor
Standard temperature
Frequency controlled

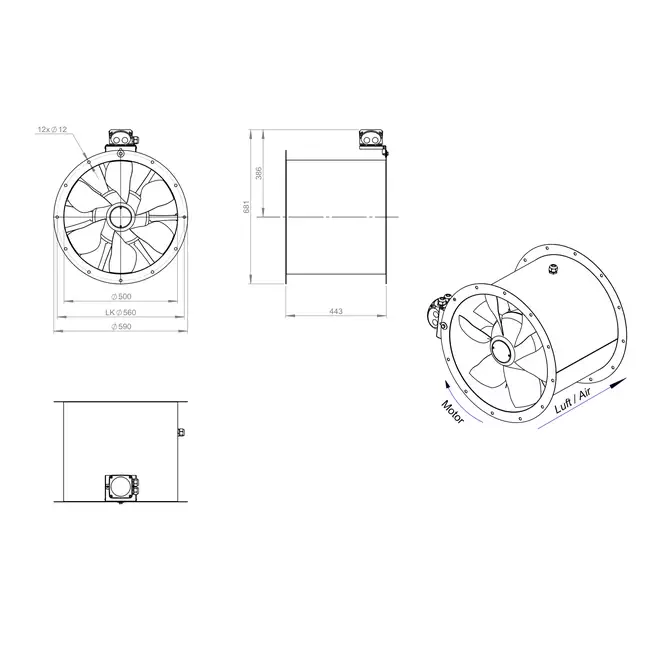

Axial 500 mm Duct Fan – AL 500 D4 02 CFG

The AL 500 D4 02 CFG from Ruck is an innovative, high-efficiency axial fan that is perfect for medium pressure applications. Thanks to the application of the latest numerical design techniques, the system efficiency has been increased and the operating range has been significantly expanded. The adjustable blades allow for flexible application within various ventilation systems in commercial and industrial settings.

Practical Design with a Focus on Ease of Installation

This fan is designed with a lightweight and optimized housing for easy installation and efficient handling. It is equipped with an IEC standard motor suitable for frequency control, allowing you to easily adjust the performance to the situation. The aerodynamically optimized blades contribute to higher efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C. It is supplied without a terminal box, but with a cable for quick connection of an external switch.

German Quality and Reliability

Ruck Ventilatoren GmbH is known for its durable and reliable ventilation technology. All products are developed and manufactured according to the current ERP (Energy Related Product) guidelines and provide stable performance under various conditions.

More Information

Brand	Ruck ventilatoren GmbH
Category	Axial duct fan
GTIN	8719544320940
Manufacturer's item number	AL 500 D4 02 CFG
Article number	65170107

Specifications

Category code	35
Length	443 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IP55
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	12760 m³/h
Suitable for frequency control	Yes
Suitable for transformer control	Yes
Suitable for electronic control	No
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	500 mm
