Good points

Brand: Ruck
AC motor
Standard temperature
Frequency controlled

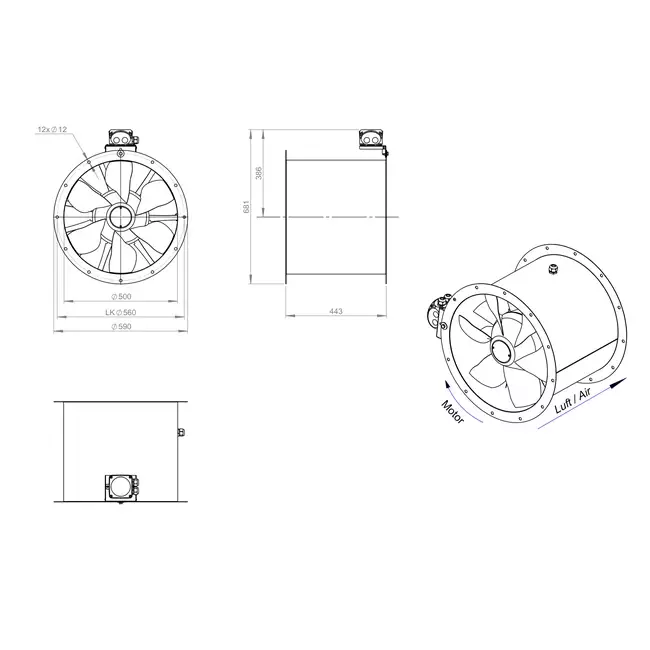

Axial 500 mm Duct Fan – AL 500 D4 01 CFG

The AL 500 D4 01 CFG from Ruck is an efficient and reliable axial fan, designed for medium pressure applications. By utilizing the latest numerical design techniques, the system efficiency has been increased and the operating range has been broadened. Thanks to the adjustable blades, this fan is widely applicable within ventilation systems in commercial, industrial, and other professional environments.

Optimized for Ease of Installation

The fan features a lightweight construction and optimized design, ensuring easy installation and efficient handling. It is equipped with an IEC standard motor suitable for frequency control. The aerodynamically shaped blades contribute to improved airflow and energy efficiency. Suitable for continuous operation at air temperatures up to 60 °C. Delivered without a terminal box, but with a cable for direct connection to an external switch.

Quality You Can Rely On

Ruck Ventilatoren GmbH is a leading manufacturer from Germany. Their fans are developed with a strong focus on sustainability, energy efficiency, and performance. All models comply with the current ERP (Energy Related Product) guidelines.

More Information

Brand	Ruck ventilatoren GmbH
Category	Axial duct fan
GTIN	8719544320933
Manufacturer's item number	AL 500 D4 01 CFG
Article number	65170104

Specifications

Category code	35
Length	443 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IP55
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	11660 m³/h
Suitable for frequency control	Yes
Suitable for transformer control	Yes
Suitable for electronic control	No
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	500 mm
