Axial 500 mm Duct Fan – AL 500 D2 02 CFG

The AL 500 D2 02 CFG from Ruck is an innovative and energy-efficient axial fan designed for medium pressure applications. Thanks to the application of the latest numerical design techniques, system efficiency has been improved and the operating range has been expanded. The adjustable blade angles provide flexible use in various ventilation systems, from commercial to industrial.

User-Friendly and Efficient Design

The fan is designed with a lightweight construction that makes installation and handling easy. Equipped with an IEC standard motor suitable for frequency control, allowing you to optimally adjust the performance to your application. The aerodynamically optimized blades contribute to increased efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C. It is supplied without a terminal box, but with a cable for easy connection of an external switch.

Reliable Performance from Ruck

Ruck Ventilatoren GmbH is a leading German manufacturer with years of experience. All fans are developed according to the current ERP (Energy Related Product) guidelines and are known for their reliability, performance, and long lifespan.

More Information

Brand	Ruck ventilatoren GmbH
Category	Axial duct fan
GTIN	8719544320889
Manufacturer's item number	AL 500 D2 02 CFG
Article number	65170066

Specifications

Category code	35

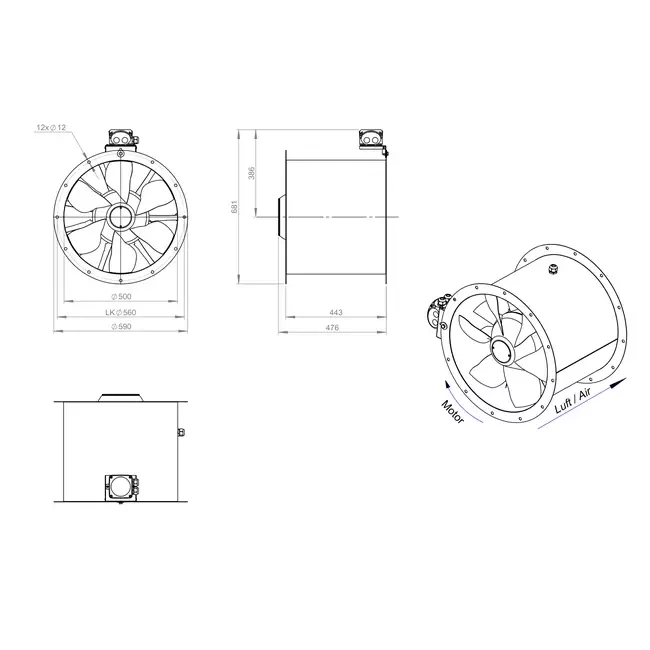

Length	443 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IP55
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	17930 m³/h
Suitable for frequency control	Yes
Suitable for transformer control	Yes
Suitable for electronic control	No
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	500 mm
