Axial 450 mm Duct Fan Flue Gas F400 – AL 450 D42U F4 02 CFG

The AL 450 D42U F4 02 CFG from Ruck is a high-quality axial fan designed for medium pressure applications and flue gas discharge in accordance with the F400 standard. By employing the latest numerical design techniques, the system efficiency has been optimized and the operating range expanded. Thanks to the adjustable blades, this fan can be used for both daily ventilation and smoke and heat extraction in case of fire (dual-use).

Efficient Design and Flexible Control

This fan features a lightweight construction, optimized for quick installation and easy handling. It is equipped with an IE3 motor that can be controlled in 2 stages via a Dahlander connection. This allows for flexible and energy-efficient system control. The aerodynamically optimized blades contribute to higher efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and complies with the F400 specification. It is supplied without a terminal box but includes a cable for direct connection to an external switch.

Ruck: German Engineering and Reliability

Ruck Ventilatoren GmbH is a leading manufacturer in the field of axial fans. With years of experience, a focus on innovation, and energy efficiency, all products are developed according to current ERP (Energy Related Product) guidelines and delivered with proven reliability.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544322258
Manufacturer's item number	AL 450 D42U F4 02 CFG
Article number	65170926

Specifications

Category code	35

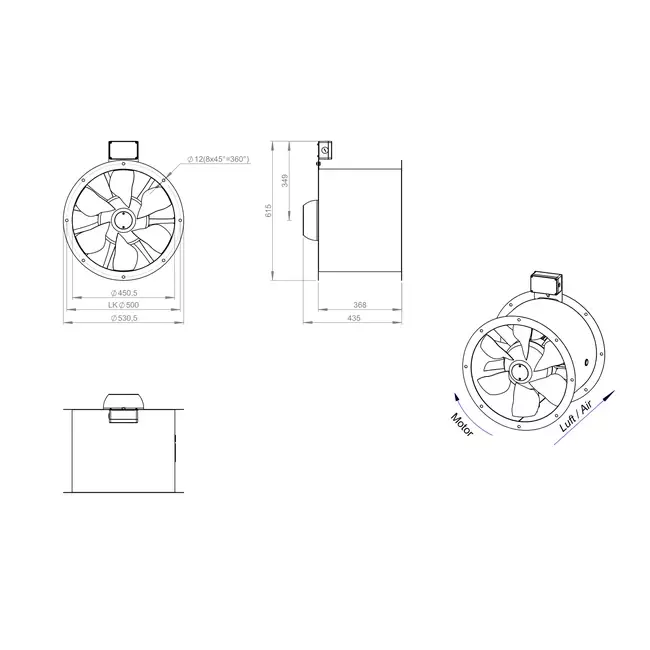

Length	368 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	11290 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	450 mm
