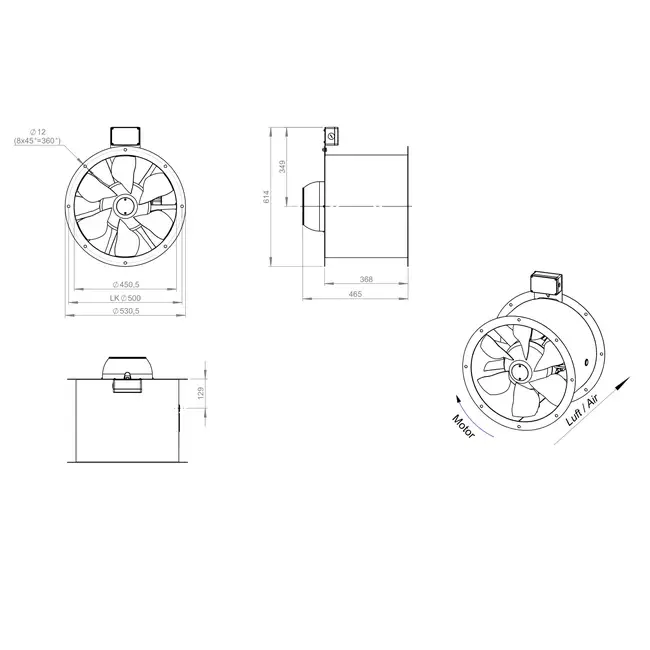

Axial 450 mm Duct Fan Flue Gas F400 – AL 450 D42U F4 01 CFG

The AL 450 D42U F4 01 CFG from Ruck is a powerful, high-efficiency axial fan designed for medium pressure applications and flue gas extraction, certified according to the F400 standard. Thanks to advanced numerical design techniques, the system efficiency has been enhanced and the operating range expanded. With adjustable blades, this fan is suitable for both standard ventilation and smoke and heat extraction in case of fire (dual-use).

Functional Design with Smart Motor Control

This fan features an optimized, lightweight design for easy installation and efficient handling. Equipped with an IE3 motor that is 2-stage adjustable via a Dahlander connection, allowing for flexible and energy-efficient control. The aerodynamically shaped blades contribute to higher efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and fully complies with the F400 specification. It is supplied without a terminal box but includes a cable for easy connection of an external switch.

Reliable Quality from Ruck

Ruck Ventilatoren GmbH is a leading German manufacturer with years of experience in ventilation technology. Their products are known for reliability, durability, and energy efficiency, developed according to the latest ERP (Energy Related Product) guidelines.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544321794
Manufacturer's item number	AL 450 D42U F4 01 CFG
Article number	65170696

Specifications

Category code	35
Length	368 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	14880 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	450 mm
