Good points
- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled
Axial 450 mm Duct Fan Flue Gas F400 – AL 450 D4 F4 01 CFG
The AL 450 D4 F4 01 CFG from Ruck is a powerful, high-efficiency axial fan suitable for flue gas extraction according to the F400 standard. By utilizing advanced numerical design techniques, system efficiency has been enhanced and the operating range has been broadened. Thanks to adjustable blades, this fan is suitable for both regular ventilation and smoke and heat extraction in case of fire (dual-use).
Compact and Efficient in Use
This fan features a lightweight and optimized design, making installation and handling easier. It is equipped with an IEC standard motor suitable for frequency control. The aerodynamically optimized blades ensure efficient air displacement and contribute to higher system performance. Suitable for continuous operation at air temperatures up to 60 °C and fully compliant with the F400 specification. Delivered without a terminal box, but with a cable for easy connection of an external switch.
German Quality and Assurance
Ruck Ventilatoren GmbH is a renowned German manufacturer with a strong focus on quality, innovation, and energy efficiency. All products are produced according to current ERP (Energy Related Product) guidelines and are designed for reliable performance under demanding conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321800 |
| Manufacturer's item number | AL 450 D4 F4 01 CFG |
| Article number | 65170699 |
Specifications
| Category code | 35 |

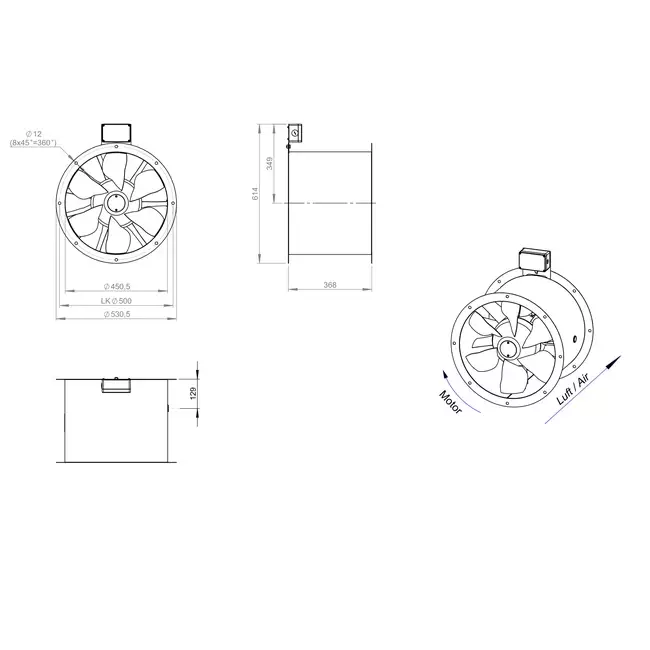

| Length | 368 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 9260 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 450 mm |
