Good points

Brand: Ruck
AC motor
Rookgas F400
Frequency controlled

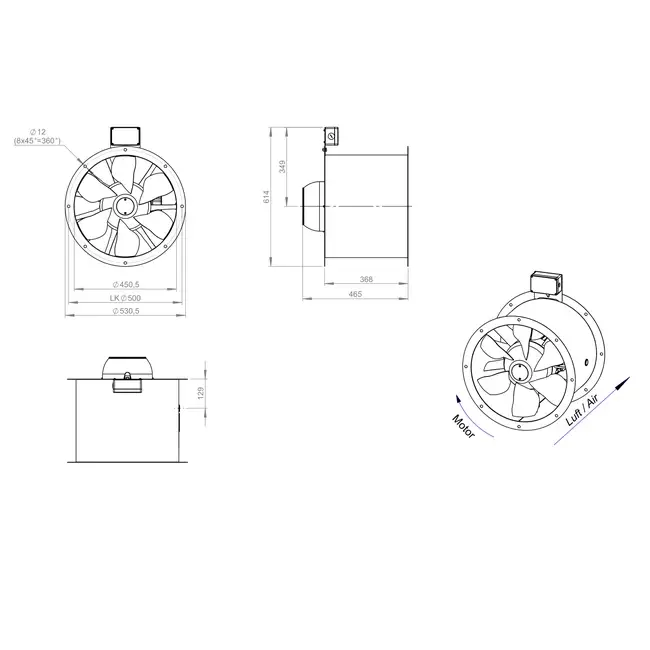

Axial 450 mm Duct Fan Flue Gas F400 – AL 450 D2 F4 01 CFG

The AL 450 D2 F4 01 CFG from Ruck is a powerful axial fan designed for medium pressure applications, suitable for flue gas discharge according to the F400 standard. Thanks to the latest numerical design techniques, the system efficiency has been optimized and the operating range has been expanded. The adjustable blades make this fan suitable for both daily ventilation and smoke and heat extraction in case of fire (dual-use).

Lightweight and Powerful Design

This fan is designed with a robust yet lightweight construction, making installation and maintenance straightforward. Equipped with an IEC standard motor suitable for frequency control. The aerodynamically optimized blades ensure efficient air displacement and increased system efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and complies with the F400 specification. It is supplied without a terminal box but includes a cable for easy connection to an external switch.

German Quality and Reliability

Ruck Ventilatoren GmbH is a leading manufacturer in ventilation technology. With years of experience and a focus on innovation, Ruck delivers reliable, energy-efficient solutions. All fans are developed according to current ERP (Energy Related Product) guidelines and meet high quality standards.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544321787
Manufacturer's item number	AL 450 D2 F4 01 CFG
Article number	65170692

Specifications

Category code	35
Length	368 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	16360 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	450 mm
