Good points
- Brand: Ruck
- AC motor
- Rookgas F300
- Frequency controlled

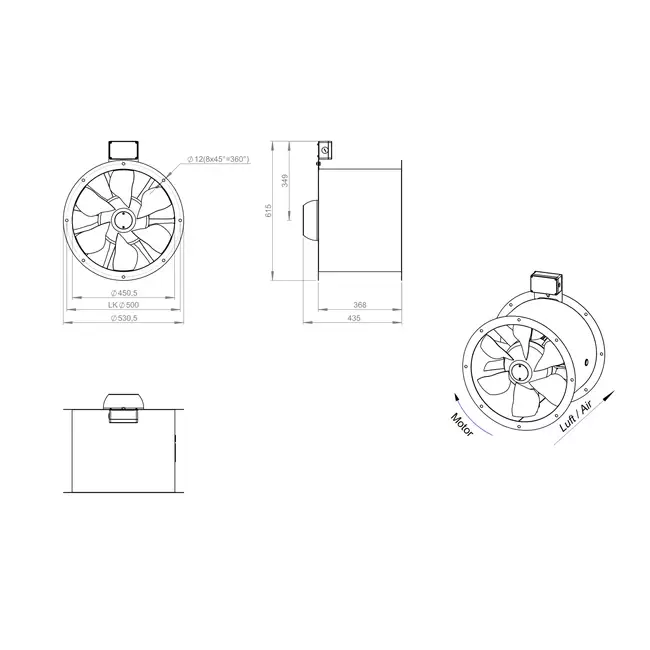

Axial 450 mm Duct Fan Flue Gas F300 – AL 450 D42U F3 02 CFG
The AL 450 D42U F3 02 CFG from Ruck is an advanced axial fan with high energy efficiency, suitable for medium pressure applications and flue gas discharge according to the F300 standard. Thanks to the latest numerical design techniques, the system efficiency has been increased and the operating range has been broadened. The adjustable blades make this fan perfect for both standard ventilation and flue gas and heat discharge in emergencies (dual-use).
Efficient and Thoughtful Design
The fan is lightweight and features an optimized design for easy installation and efficient handling. Equipped with an IE3 motor that is 2-stage adjustable via a Dahlander switching, allowing for flexible and energy-efficient control. The aerodynamically shaped blades ensure increased system efficiency. This model is designed for continuous operation at air temperatures up to 60 °C. Delivered without a terminal box, but with a cable for quick connection to an external switch.
Reliable Quality from Ruck
Ruck Ventilatoren GmbH is a leading German manufacturer with years of experience in axial fans. Each product is produced according to the current ERP (Energy Related Product) guidelines and is known for its durability, reliability, and performance under harsh conditions.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544322319 |
| Manufacturer's item number | AL 450 D42U F3 02 CFG |
| Article number | 65170950 |
Specifications
| Category code | 35 |
| Length | 368 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 11290 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 450 mm |
