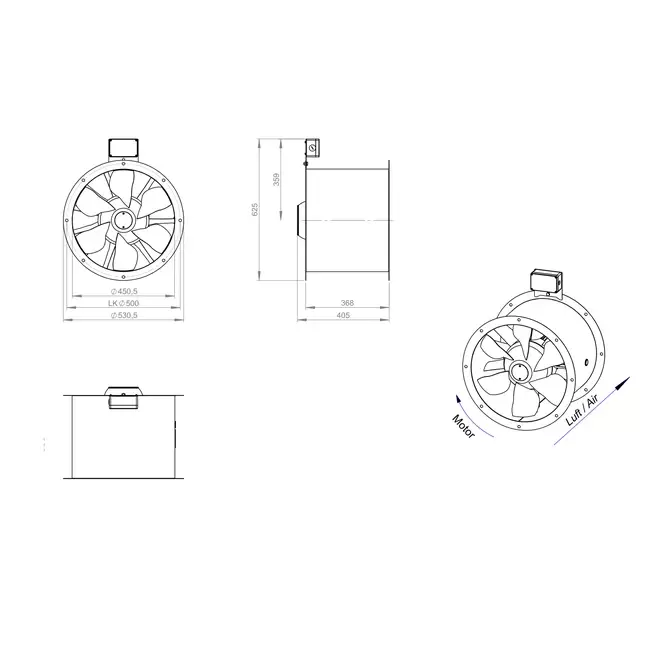

Axial 450 mm Duct Fan Flue Gas F300 – AL 450 D2 F3 02 CFG

The AL 450 D2 F3 02 CFG from Ruck is a high-efficiency axial fan, designed for medium pressure applications and certified for flue gas discharge according to the F300 standard. Thanks to the latest numerical design techniques, the system efficiency has been optimized and the operating range has been significantly increased. The adjustable blades make this fan suitable for both standard ventilation and smoke and heat extraction in case of fire (dual-use).

Robust Design with Optimized Weight

This fan features a robust yet lightweight construction that simplifies installation and ensures efficient handling. It is equipped with an IEC standard motor suitable for frequency control. The aerodynamically optimized blades contribute to a higher system efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and complies with the F300 specification. The fan is supplied without a terminal box, but with a cable for easy connection of an external switch.

Quality Guaranteed

Ruck Ventilatoren GmbH is a leading manufacturer of axial fans with a strong focus on quality and innovation. All products are developed according to the latest ERP (Energy Related Product) guidelines and are suitable for demanding applications in installation technology.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544322302
Manufacturer's item number	AL 450 D2 F3 02 CFG
Article number	65170944

Specifications

Category code	35
Length	368 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	13070 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	450 mm
