Good points

Brand: Ruck
AC motor
Standard temperature
Frequency controlled

Axial 450 mm Duct Fan – AL 450 D42U 02 CFG

The AL 450 D42U 02 CFG from Ruck is a high-quality axial fan with high energy efficiency, designed for medium pressure applications. By applying the latest numerical design techniques, the system efficiency has been increased and the operating range significantly expanded. Thanks to the adjustable blades, this fan is flexibly applicable within various ventilation systems in commercial and industrial settings.

Robust Design with Optimized Weight

The fan features an optimized, lightweight design that ensures easy installation and efficient handling. It is equipped with an IE3 motor that is 2-stage adjustable via a Dahlander switch, providing flexible and energy-efficient operation. The aerodynamically optimized blades contribute to increased system efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C. The fan is supplied without a terminal box, but with a cable for easy connection to an external switch.

Quality Guaranteed

Ruck Ventilatoren GmbH is a well-established name in the ventilation industry, known for reliable and innovative products. With years of experience and a strong focus on quality, all fans are developed according to the latest ERP (Energy Related Product) guidelines.

More Information

Brand	Ruck ventilatoren GmbH
Category	Axial duct fan
GTIN	8719544322210
Manufacturer's item number	AL 450 D42U 02 CFG
Article number	65170911

Specifications

Category code	35

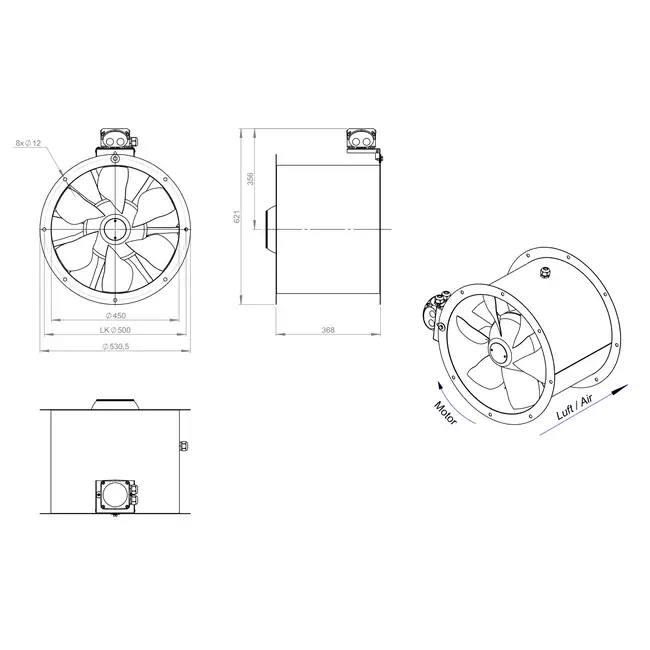

Length	368 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	11290 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	450 mm
