Axial 450 mm Duct Fan – AL 450 D42U 01 CFG

The AL 450 D42U 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. Thanks to the latest numerical design techniques, system efficiency has been significantly improved and the operating range has been greatly expanded. With adjustable blades, this fan is widely applicable within ventilation systems in commercial and industrial settings.

Robust Design with Optimized Weight

The fan features a lightweight, optimized design that simplifies installation and makes handling efficient. It is equipped with an IE3 motor that is 2-stage adjustable via a Dahlander connection, allowing for flexible and energy-efficient control. The aerodynamically shaped blades contribute to higher efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C. The fan is supplied without a terminal box, but with a cable for easy connection to an external switch.

Quality Guaranteed

Ruck Ventilatoren GmbH is a leading manufacturer from Germany with years of experience in axial fans. With a focus on quality, energy efficiency, and innovation, all products are manufactured according to the current ERP (Energy Related Product) guidelines.

More Information

Brand	Ruck ventilatoren GmbH
Category	Axial duct fan
GTIN	8719544320872
Manufacturer's item number	AL 450 D42U 01 CFG
Article number	65170063

Specifications

Category code	35

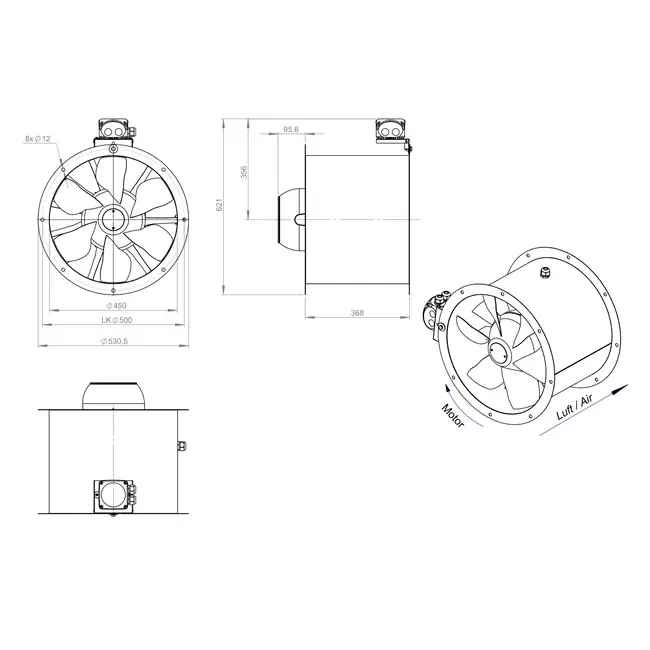

Length	368 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IP55
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	14880 m³/h
Suitable for frequency control	Yes
Suitable for transformer control	Yes
Suitable for electronic control	No
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	450 mm
