Good points

Brand: Ruck
AC motor
Standard temperature
Frequency controlled

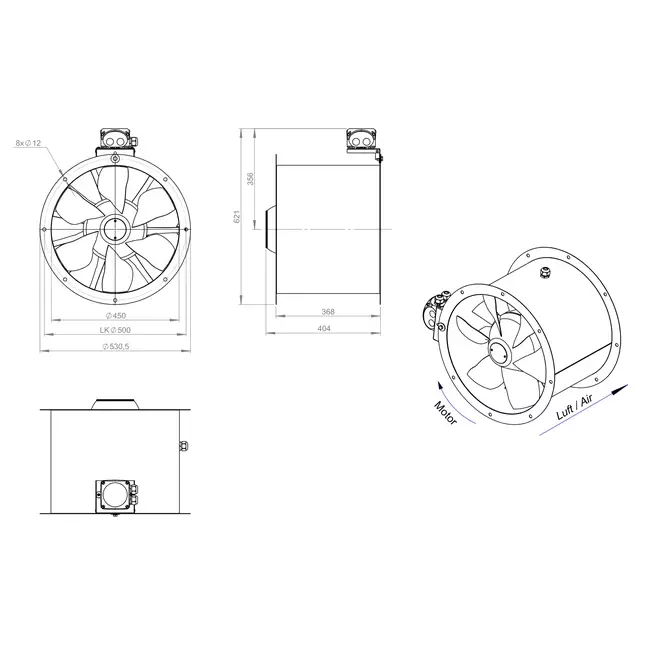

Axial 450 mm Duct Fan – AL 450 D4 03 CFG

The AL 450 D4 03 CFG from Ruck is an innovative and energy-efficient axial fan, designed for medium pressure applications. Thanks to advanced numerical design techniques, the system efficiency has been optimized and the operating range expanded. The adjustable blades make this fan suitable for a variety of ventilation applications in commercial and industrial settings.

Robust Design with Optimized Weight

The design of this fan offers an optimal balance between durability and ease of use. The lightweight construction makes installation and handling significantly easier. The fan is equipped with an IEC standard motor and is suitable for frequency control. The aerodynamically optimized blades ensure efficient air displacement. This model is suitable for continuous operation at air temperatures up to 60 °C. It is supplied without a terminal box, but with a cable for easy connection of an external switch.

Quality Guaranteed

Ruck Ventilatoren GmbH is a leading German manufacturer with extensive experience in axial fans. They are known for their innovative approach, high quality standards, and products that meet current ERP (Energy Related Product) requirements.

More Information

Brand	Ruck ventilatoren GmbH
Category	Axial duct fan
GTIN	8719544322234
Manufacturer's item number	AL 450 D4 03 CFG
Article number	65170917

Specifications

Category code	35
Length	368 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	11930 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	450 mm
