Good points

Brand: Ruck
AC motor
Standard temperature
Frequency controlled

Axial 450 mm Duct Fan – AL 450 D4 02 CFG

The AL 450 D4 02 CFG from Ruck is an efficient and reliable axial fan for medium pressure applications. Thanks to advanced numerical design techniques, system efficiency has been enhanced and the operating range has been expanded. The adjustable blades provide a wide application range across various ventilation applications in commercial and industrial environments.

Robust Design with Optimized Weight

The fan features a lightweight, optimized design that simplifies installation and facilitates handling. It is equipped with an IEC standard motor suitable for frequency control. The aerodynamically optimized blades ensure higher system efficiency. This model is designed for continuous operation at air temperatures up to 60 °C. Delivered without a terminal box, but with a cable for easy connection of an external switch.

Quality Guaranteed

Ruck Ventilatoren GmbH is a leading German manufacturer with years of experience in the production of axial fans. The company is known for its focus on innovation, reliability, and energy efficiency. All products are developed and manufactured in accordance with current ERP (Energy Related Product) guidelines.

More Information

Brand	Ruck ventilatoren GmbH
Category	Axial duct fan
GTIN	8719544322227
Manufacturer's item number	AL 450 D4 02 CFG
Article number	65170914

Specifications

Category code	35

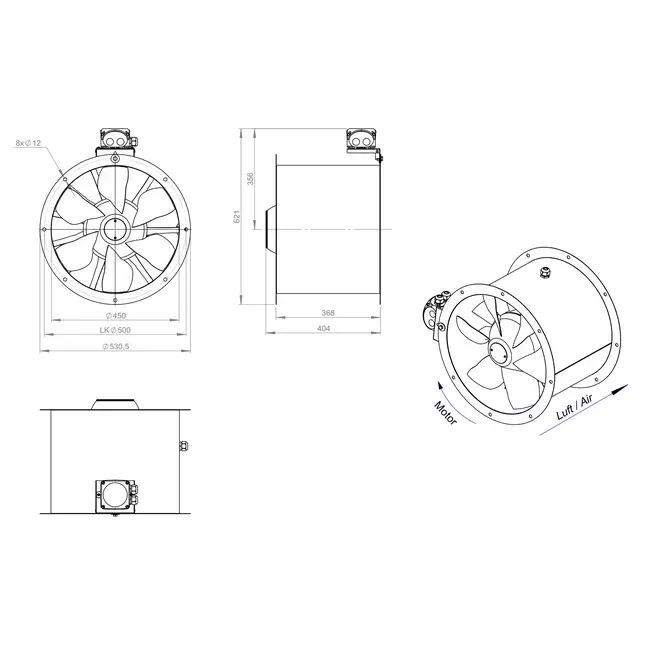

Length	368 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	10025 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	450 mm
