Good points

Brand: Ruck
AC motor
Standard temperature
Frequency controlled

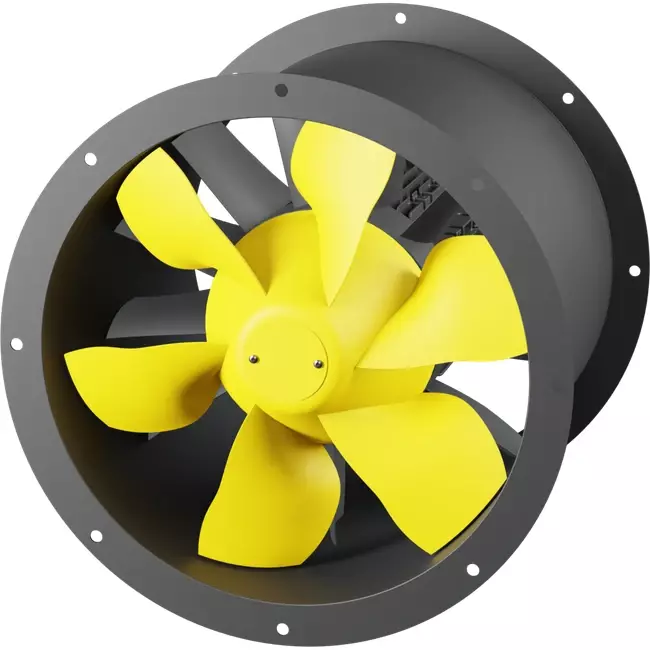

Axial 450 mm Duct Fan – AL 450 D2 01 CFG

The AL 450 D2 01 CFG from Ruck is an innovative axial fan with high efficiency, developed for medium pressure applications. By utilizing the latest numerical design techniques, the system efficiency has been optimized and the operating range expanded. Thanks to the adjustable blades, this fan is widely applicable for various uses in commercial buildings and industry.

Robust Design with Optimized Weight

The design of this fan combines a robust construction with a low weight, making installation and handling easier. The fan is equipped with an IEC standard motor suitable for frequency control. The aerodynamically optimized blades ensure efficient air displacement and contribute to increased system efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C. Delivered without a terminal box, but with a cable for easy connection of an external switch.

Quality Guaranteed

Ruck Ventilatoren GmbH is a renowned German manufacturer and market leader in the field of axial fans. With a strong focus on innovation, sustainability, and performance, all products are developed according to the latest ERP (Energy Related Product) guidelines and produced to high quality standards.

More Information

Brand	Ruck ventilatoren GmbH
Category	Axial duct fan
GTIN	8719544322203
Manufacturer's item number	AL 450 D2 02 CFG
Article number	65170908

Specifications

Category code	35
Length	368 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	13070 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	450 mm
