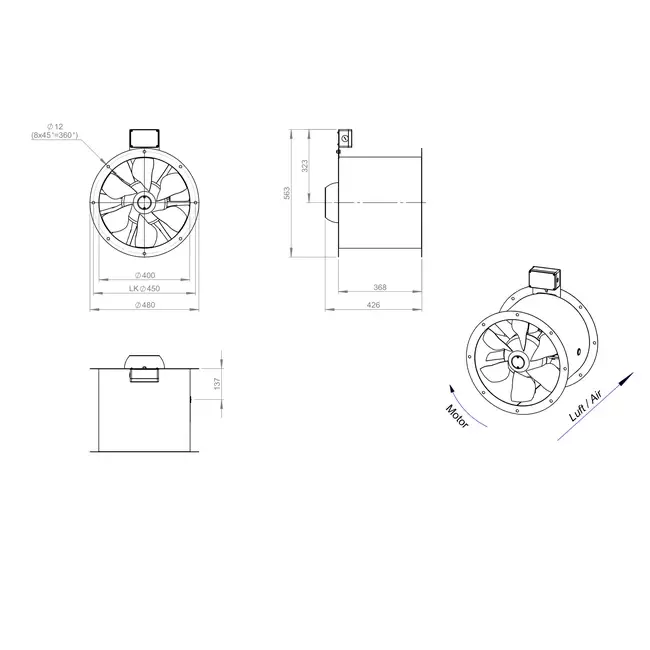

Axial 400 mm Duct Fan Flue Gas F400 – AL 400 D42U F4 01 CFG
The AL 400 D42U F4 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications, specifically developed for flue gas discharge in accordance with the F400 standard. By utilizing the latest numerical design techniques, system efficiency has been optimized and the operating range expanded. Thanks to adjustable blades, this fan is suitable for both regular ventilation and smoke and heat extraction in case of fire (dual-use).
Robust Design with Optimized Weight
This fan features a lightweight, optimized construction that ensures easy installation and efficient handling. Equipped with an IE3 motor that is 2-stage adjustable via a Dahlander connection, this model offers energy-efficient and flexible control. The aerodynamically optimized blades contribute to increased system efficiency. This model is designed for continuous operation at air temperatures up to 60 °C and complies with the F400 specification for flue gas ventilation. The fan is supplied without a terminal box but includes a cable for easy connection to an external switch.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. As a market leader in axial fans, Ruck provides high-quality and reliable solutions. All products are designed and manufactured in accordance with the latest ERP (Energy Related Product) guidelines and meet the strictest safety and performance requirements.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321459 |
| Manufacturer's item number | AL 400 D42U F4 01 CFG |
| Article number | 65170398 |
Specifications
| Category code | 35 |
| Length | 368 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 10480 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 400 mm |
