- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled

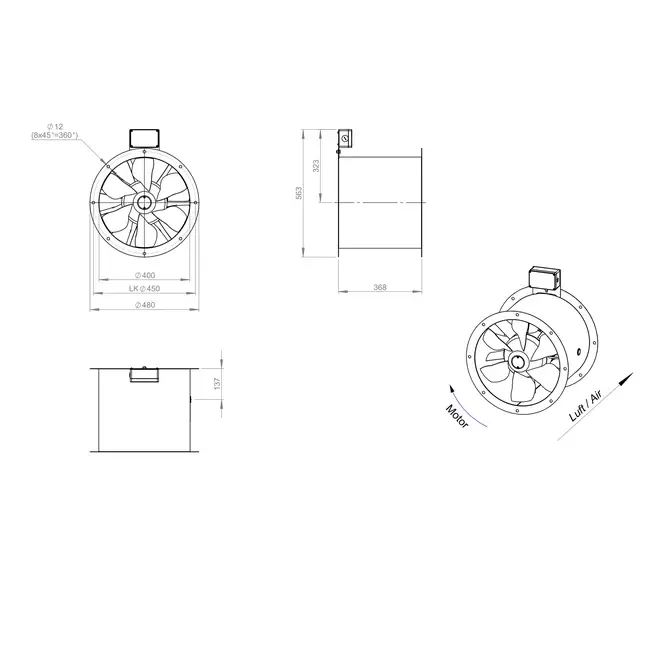

Axial 400 mm Duct Fan Flue Gas F400 – AL 400 D4 F4 01 CFG
The AL 400 D4 F4 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications, suitable for flue gas discharge in accordance with the F400 standard. By utilizing the latest numerical design techniques, system efficiency has been significantly improved and the operating range has been greatly expanded. Thanks to the adjustable blade angles, this fan is suitable for a wide range of applications, including regular ventilation and smoke and heat extraction in case of fire (dual-use).
Robust Design with Optimized Weight
The fan features a lightweight yet robust construction, making it easy to install and handle. The optimized design reduces weight without compromising strength or durability. The fan is equipped with an IEC standard motor and is suitable for frequency control. The aerodynamically optimized blades contribute to increased system efficiency. This model is designed for continuous operation at air temperatures up to 60 °C and complies with the F400 specification for flue gas ventilation. Delivered without a terminal box, but with a cable for easy connection of an external switch.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. As a market leader in axial fans, Ruck delivers innovative and reliable products that meet the highest quality standards. All fans are designed in accordance with the latest ERP (Energy Related Product) guidelines, ensuring optimal performance and durability.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321466 |
| Manufacturer's item number | AL 400 D4 F4 01 CFG |
| Article number | 65170401 |
Specifications
| Category code | 35 |
| Length | 368 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 7310 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 400 mm |
