Good points
- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled
Axial 400 mm Duct Fan Flue Gas F400 – AL 400 D2 F4 02 CFG
The AL 400 D2 F4 02 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications and certified for flue gas discharge according to the F400 standard. Thanks to the application of the latest numerical design techniques, system efficiency has been increased and the operating range significantly expanded. The adjustable blades make this fan suitable for a wide range of applications, including both regular ventilation and smoke and heat extraction in case of fire (dual-use).
Robust Design with Optimized Weight
The fan is designed with a lightweight yet durable construction, simplifying installation and making handling more efficient. Equipped with an IEC standard motor suitable for frequency control. The aerodynamically optimized blades ensure increased system efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and complies with the F400 specification for flue gas ventilation. The fan is supplied without a terminal box but comes with a cable for easy connection to an external switch.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. As a market leader in axial fans, Ruck delivers reliable and efficient products that meet the highest quality standards. All products are developed in accordance with the latest ERP (Energy Related Product) requirements.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321428 |
| Manufacturer's item number | AL 400 D2 F4 02 CFG |
| Article number | 65170383 |
Specifications
| Category code | 35 |

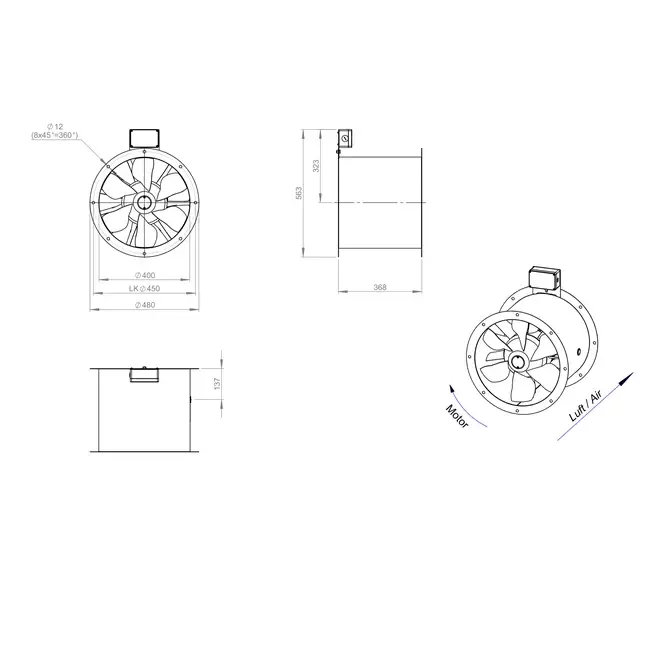

| Length | 368 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 8800 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 400 mm |
