Good points
- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled

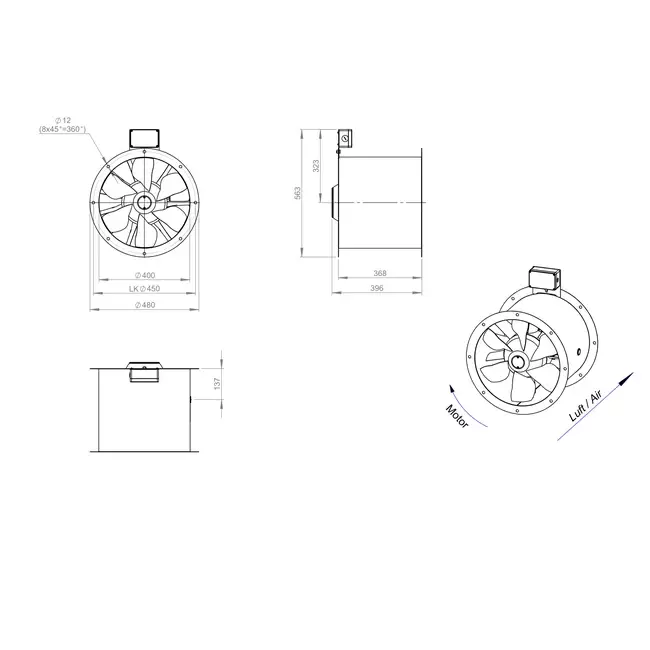

Axial 400 mm Duct Fan Flue Gas F400 – AL 400 D2 F4 01 CFG
The AL 400 D2 F4 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications, certified for flue gas discharge according to the F400 standard. Thanks to the application of the latest numerical design techniques, system efficiency has been significantly improved and the operating range expanded. The adjustable blades provide optimal flexibility, making this fan suitable for both daily ventilation and smoke and heat extraction in emergency situations (dual-use).
Robust Design with Optimized Weight
This fan features a robust yet lightweight construction for easy installation and efficient handling. The design is optimized to reduce weight without compromising durability. Equipped with an IEC standard motor suitable for frequency control. The aerodynamically optimized blades contribute to increased system efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and complies with the F400 specification for flue gas ventilation. The fan is supplied without a terminal box but comes with a cable for easy connection to an external switch.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. As a market leader in axial fans, Ruck delivers high-quality products that meet the strictest quality and performance standards. All products are developed and manufactured in accordance with the latest ERP (Energy Related Product) guidelines.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321435 |
| Manufacturer's item number | AL 400 D2 F4 01 CFG |
| Article number | 65170389 |
Specifications
| Category code | 35 |
| Length | 368 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 10480 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 400 mm |
