Good points

Brand: Ruck
AC motor
Rookgas F300
Frequency controlled

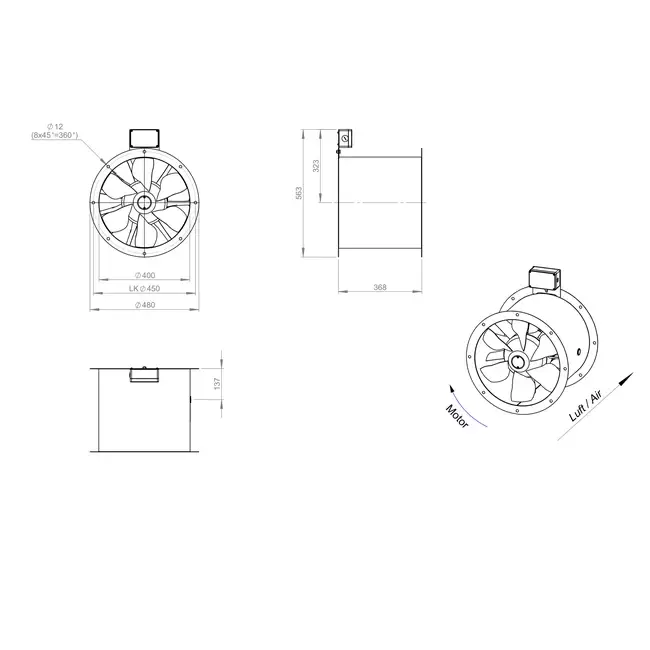

Axial 400 mm Duct Fan Flue Gas F300 – AL 400 D2 F3 02 CFG

The AL 400 D2 F3 02 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications and certified for flue gas discharge according to the F300 standard. By utilizing the latest numerical design techniques, system efficiency has been significantly improved and the operating range has been expanded. Thanks to adjustable blades, this fan is perfectly suitable for both daily ventilation and smoke and heat extraction in case of fire (dual-use).

Robust Design with Optimized Weight

This fan features a lightweight, optimized design that ensures easy installation and efficient handling. Equipped with an IEC standard motor, suitable for frequency control. The aerodynamically optimized blades enhance system efficiency. The fan is designed for continuous operation at air temperatures up to 60 °C and complies with the F300 specification for flue gas ventilation. This model is supplied without a terminal box but includes a cable for easy connection to an external switch.

Quality Guaranteed

Ruck Ventilatoren GmbH is a leading German company with years of experience. They are market leaders in the field of axial fans. With over 300 dedicated employees, Ruck works daily on innovation and quality. The products comply with the latest ERP (Energy Related Product) guidelines and guarantee reliability and performance.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544321480
Manufacturer's item number	AL 400 D2 F3 02 CFG
Article number	65170451

Specifications

Category code	35
Length	368 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	8800 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	400 mm
